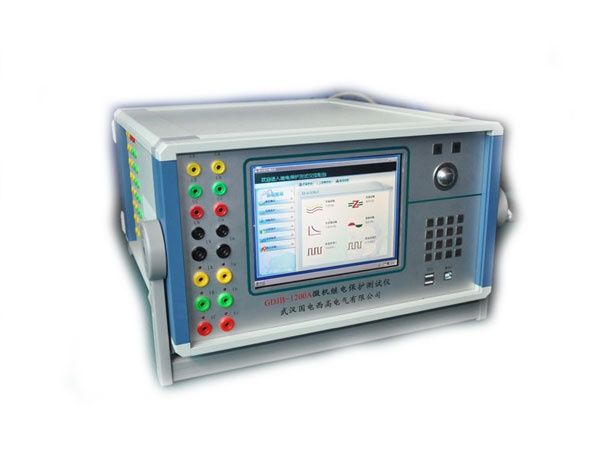

HV HIPOT GDJB-1200A Relay Protection Tester (6 phase)

• AC Current Output

6-phase (RMS): 6*0~30A

3-phase (RMS): 3*0~60A

6-phase parallel current output (RMS): 0~180A

Allowable long time working value of phase current (RMS): 10A

Maximum output power of phase current: 400VA

Allowable working hours @ max. output of 6-phase parallel current: 10s

Accuracy: <0.2% (within the main range)

Frequency range (Fundamental wave): 0~1000Hz

Harmonic times: 0~20 times

• DC Current Output

Current output: 0~±10A/phase; 0~±60A/6-pahse parallel

Accuracy: 0.2%

Maximum output load voltage: 18V

• AC Voltage Output

Phase voltage output (RMS) 0~120V; Accuracy: 0.2%

Line voltage output (RMS): 0~240V

Phase voltage/Line voltage output power: 80VA/100VA

Frequency range (Fundamental wave): 20~1000Hz

Harmonic times: 1~20 times

• DC Voltage Output

Phase voltage output amplitude: 0~±160V; Accuracy: 0.2%

Line voltage output amplitude: 0~±320V

Phase voltage/Line voltage output power: 70VA/140VA

• Binary

Binary input: 10 channels

Idle contact: 1~20mA, 24V

Potential contact access “0”: 0 ~+6V; “1”: +11 V ~+250 V

Binary output: 8 pairs: DC: 220 V/0.2 A; AC: 220 V/0.5 A

• Time Measuring Range: 0.1ms~9999s; Measuring accuracy: <0.1mS

• Dimension & Weight: 480*360*200mm³; 19kg
