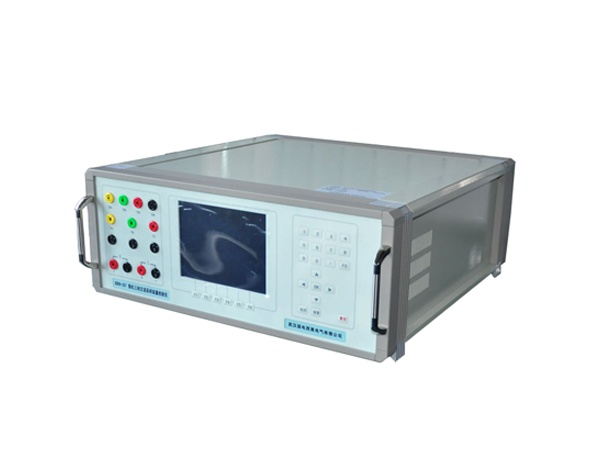

HV HIPOT GDDO-20T Calibrator for AC Sampling and Transmitters (50~600V)

AC voltage range: 50V, 100V, 200V, 400V, 600V; Max. output capacity: 20VA

AC current range: 0.5A, 1A, 2.5A, 5A, 10A, 20A; Max. output capacity: 20VA

Adjustment range of AC voltage and current: 0~130% FS, fineness adjustment: 5×10-5

Accuracy of power frequency AC voltage and current: 0.05% FS

Active power: 50~400V, accuracy: 0.05%FS

Reactive power: 50~400V, accuracy: 0.1%FS

Phase accuracy of current to same phase voltage: 0.050

Frequency: adjustment range: 45~65Hz, fineness adjustment: 0.001Hz, accuracy of setting value: 0.01Hz

Phase: adjustment range: 0~359.99°, fineness adjustment 0.01°

Power factor: adjustment range: 0~±1, fineness adjustment: 0.0001, accuracy of setting value: 0.0005

Waveform distortion of AC voltage and current output: ≤0.3%

Stability of AC voltage, current and power output: ≤0.01% FS /60s

Harmonic: 2nd~31th, amplitude: 0~40%, phase fineness of each harmonic: 0.010·N(N refers to harmonic order)

DC voltage range: 75mV, 75V, 150V, 300V, 500V, 1000V, Max. output capacity: 20W

DC current range: 0.5A, 1A, 2.5A, 5A, 10A, 20A, Max. output capacity: 20W

Adjustment range of DC voltage and DC current: 0~120%FS (For 1000V: 0~105% FS), fineness adjustment: 5×10-5

Accuracy of DC voltage and DC current output: ≤0.01% FS /60s (Peak-peak)

Setting value accuracy of DC voltage: 0.05%FS

Setting value accuracy of DC current: 0.1%FS

Accuracy of DC output (at 75mV, load ≥5Ω): 0.1%FS

DC measurement accuracy(for transmitter output and measurement): 0.02%FS (Voltage: 0~±24V, current: 0~±24mA)

Comprehensive error of electricity meter measurement (50~400V): 0.05%(Pulse output: three phase rated value=6Hz)

Power supply: single phase 220V±10%, 50Hz±5%

Use conditions: 20℃±10℃, ≤85%RH

Size: 460*460*175mm

Weight: 20kg (Upgraded version 24kg)
