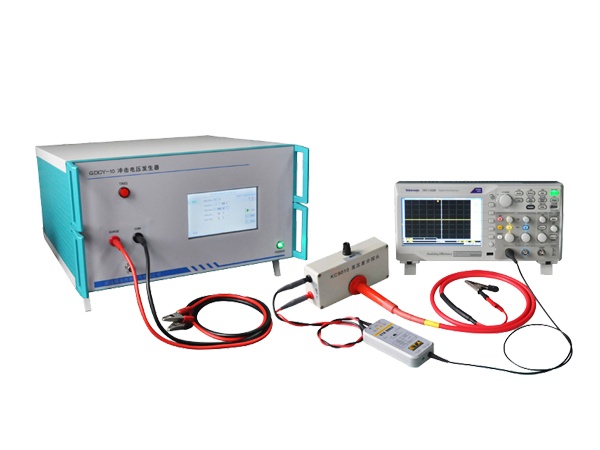

HV HIPOT GDCY-10 Impulse Voltage Generator (200~10000V ±10%)

Specification

Voltage polarity: Positive, negative, first positive then negative, first negative then positive

Test voltage: 200~10000V ±10%

Wave head time: 1.2us ± 30%

Half peak time: 50us ± 20%

Output impedance: 500Ω ± 10%

Time interval: 3 ~ 9999s

Test times: 1~9999 times

Power supply: AC220V±10%, 50Hz

Power consumption: 150W

Use environment: Temperature: 0~40℃, humidity: ≤80%

Dimension & Weight: 15kg, 450*520*174 mm
