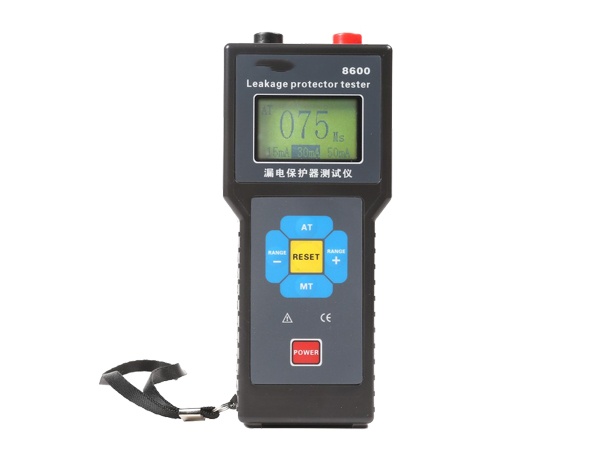

HV HIPOT GDCR8600 Leakage Protector Tester

Specification

Power supply: DC6V alkaline dry battery LR6 (1.5V 4pcs)

Voltage of test line: ＜AC250V

Rated voltage: AC220V

Leakage current step: 15, 30, 50, 75, 100, 150, 200, 250, 300, 500 (unit: mA)

Leakage action time range: 0~999ms

Leakage action time accuracy: ±2ms

Current accuracy: ±5%+2dgt

Failure indication: The LCD displays the “fault” indication due to too small rated action current or the faulty leakage protector.

Test lead: 1.8m

Test mode: Manual / Automatic mode

Display mode: LCD: 128*64 dots

Size: 170*75*30mm

Weight: 290g(with battery); total weight: 350g (with packing box)

Size of LCD: 44*27mm

Battery voltage: When the battery voltage drops to 4.8V, the battery voltage is low, please charge in time. The measurements are also accurate at low battery voltage.

Working current: 40mA Max

Use conditions: -10℃~40℃; <80%RH

Storage conditions: -10℃~60℃; <70%RH

Withstand voltage: ≥100MΩ, AC2kV/rms (between shell and screws)

Standard compliance: IEC1010-1, IEC1010-2-032, pollution degree 2, CAT Ⅲ(600V) IEC61326 (EMC standard)

Accessories

Main unit x 1 set

Carrying bag x 1pc

Probe test line x 1pc

Test line of alligator clip x 1pc

Test line of power socket x 1pc

Packing box x 1pc

Alkaline dry battery (AAA 1.5V) x 4pcs

User’s guide x 1 copy

Warranty card x 1 copy

Factory test report x 1 copy
