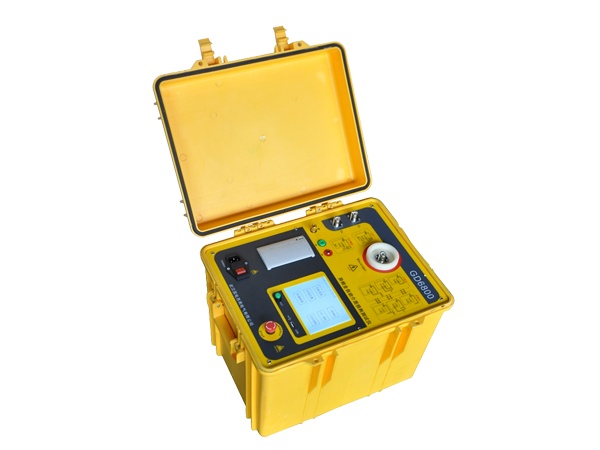

HV HIPOT GD6800 Capacitance and Dissipation Factor Tester (2000VA)

Working condition: -15℃~40℃; RH<80%

Anti-interference principle: Frequency conversion

Power supply: AC 220V±10%; Generator can be used.

High voltage output: 0.5KV~10KV; Every 0.1kV

Accuracy: 2%

Max. current: 200mA

Capacity: 2000VA

Self-excitation power: AC 0V~50V/15A;

45HZ/55HZ; 47.5HZ/52.5HZ

55HZ/65HZ; 57.5HZ/62.5HZ

Automatic dual frequency

Resolution: tgδ: 0.001%; Cx: 0.001pF

Accuracy: ∆tgδ: ±(reading*1.0%+0.040%); ∆C x: ±(reading*1.0%+1.00PF)

Measurement range:

Tgδ: Without limit

Cx: 15pF < Cx < 300nF

10KV: Cx < 60 nF

5KV: Cx < 150 nF

1KV: Cx < 300 nF

CVT test: Cx < 300 nF

LCR measurement range: L>20H(2kV); R>10KΩ(2kV)

LCR measurement accuracy: 0.1%; Angle resolution: 0.01

CVT ratio range: 10~10000

CVT ratio accuracy: 0.1%

CVT ratio resolution: 0.01

Dimension:

Main unit: 350(L)×270(W)×270(H)

Accessory box: 350(L)×270(W)×160(H)

Memory capacity: 200 groups, USB flash disk storage is supported.

Weight: Main unit: 22.75Kg

Accessory box: 5.25Kg
