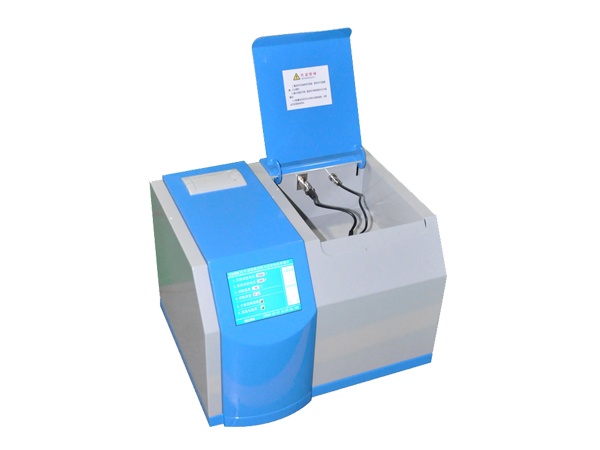

HV HIPOT GD6100B Transformer Oil Tan Delta Tester (5pF~200pF)

Voltage supply: AC 220V±10%

Power frequency: 50Hz/60Hz ±1%

Measuring range

Capacitance: 5pF~200pF

Relative Permitivity: 1.000~30.000

Dielectric loss factor: 0.00001~100

DC Resistivity: 2.5MΩm~20TΩm

Measuring accuracy

Capacitance: ± (1% of reading+0.5pF)

Relative Permittivity: ±(1~10)% of reading

Dielectric dissipation factor: ± (5% of reading+0.0002)

DC Resistivity: ±10% of reading

Resolution

Capacitance: 0.01pF

Relative capacitivity: 0.001

Dielectric dissipation factor: 0.00001

Measured temperature range: 0~120℃

Temperature measurement error: ±0.5℃

AC Test Voltage: 200~2200V Continuously adjustable, frequency 50Hz

DC Test Voltage: 0~500V Continuously adjustable

Power consumption: 100W

Ambient temperature: 0℃~40℃

Relative humidity: <75%RH

Dimensions: 450*410*320mm

Total weight: 25kg
