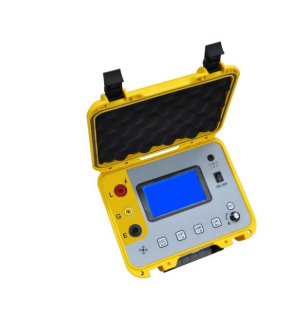

HV HIPOT GD3125 Insulation Resistance Tester (5.0kV, 2TΩ)

Rated testing voltage: 250 V, 500V, 1.0kV, 2.5kV, 5.0kV

Upper limit of measuring range: 100GΩ, 200GΩ, 500GΩ, 1TΩ, 2TΩ

Lower limit of measuring range: 0.1MΩ

Output voltage error: ±5%

Short-circuit current: Approx.3mA

Accuracy Class: 5.0

Basic error of second half measuring range: ±(5%·Rx + 1d)

Basic error of first half measuring range: ±(10%·Rx + 2d)

High voltage display error: ±(5%·Ux + 1d)

Temperature measuring error: ±0.5°C

Air humidity measuring error: ±2%RH

Power supply: 12V lithium battery

Service life of battery after one-time charging: 30 days, 10 times of DAR and 5 times of PI test for each day

Insulation resistance: > 500 MΩ (between the test line and machine case)

Voltage resistance: AC 10.0kV 50Hz 1min (between the test line and machine case)

Working temperature and humidity: 0°C ~ + 40°C < 85%RH

Storage temperature and humidity: - 20°C ~ + 50°C < 90%RH

Dimension: 274 (L) X 225(W) X 113(H) (mm)

Weight: About 4.5kg

Packing List

Main Unit: 1 set

L - terminal test connecting line (red): 1 piece

G - terminal test connecting line (yellow): 1 piece

E- terminal test connecting line (black): 1 piece

1A power adapter: 1 piece

User Manual: 1 copy

Factory test report: 1 copy
