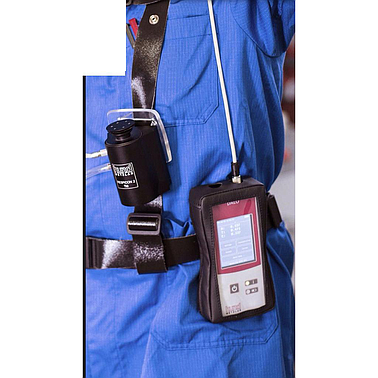

HUND Respicon 2 TM ( 0-10 mg/m³)

Principle of operation: Simultaneous collection of airborne particles in three size fractions according to EN 481
(inhalable, thoracic, respirable). Scattered-light photometers in each of the three stages
for time-resolved online measurements
Collected dust fractions:
Inhalable: < 100 μm
Thoracic: < 10 μm
Respirable: < 4 μm
(< 2,5 μm with optional inlet head)
Separation principle: Two-stage virtual impaction
Measurement range [mg/m³] (DEHS particles, d = 1 μm): 0 – 10
Sensitivity [mV/mg/m³]: 300
Detection limit [μg/m³] (DEHS particles, d = 1 μm): approx. 30
Filter modules: Filter cassettes for glass-fiber or membrane filters (37 mm diameter)
Mounting thread : Whitworth thread W ¼” in bottom stage
Dimensions [mm] : H x D: 110 x 60
Standards : EN 481, ISO7708, ACGIH, AIHA, MAK, TRGS, test report acc. to prEN 13205 for Respicon TM
Sampling pump:
Volume flow [l/min]: 6,22
Pressure drop: 4 kPa
Operation time (as specified by manufacturer): ca. 24h

Datasheet

manual

Datalogger DALO:

manual

Initial Equipment for Respicon und Respicon TM

1. Glass fibre,

• 37 mm dia, without binders, with central hole, (1 item = 50 filters),
• Recommended amount: 4 items each 50 filters

2. Glass fibre,

• 37 mm dia, without binders, without central hole, (1 item = 50 filters),
• Recommended amount: 2 items each 50 filters

3. Filter cartridge,

• to incorporate 37 mm glass fibre filters

Optional Accessories for Respicon und Respicon TM

1. Stage flow checker (for Resicon)
2. Stage flow checker (for Respicon TM and 2 TM)
3. Zero-air / total volume flow test adapter
4. Rotameter kit, with base, range: 0.4 - 4.0 liters/min
5. Silicone tube, 2m necessary for connection of Rotameter and test adapter
6. Harness belt
7. Fastening clip for harness belt
8. Carrying case
9. Leather carrying case for Datalogger DALO
10. Leather strap for Datalogger DALO
