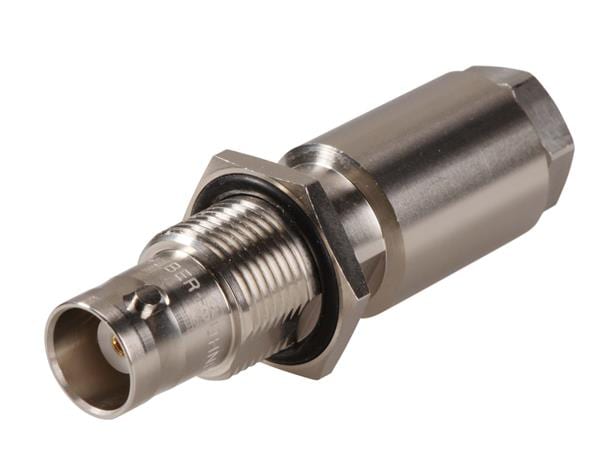

HUBER+SUHNER 24_BNC-50-6-1/12-_NE Connectors

Gender: Jack (Socket)

Polarity: Standard

Impedance: 50 Ohms

Isolation: Non-Isolated

RF Series: BNC

Body Style: Bulkhead

Cable Type: EACON-6C

Body Finish: Nickel

Orientation: Straight

Unit Weight: 38.550 g

Contact Type: Socket (Female)

REACH - SVHC: Details

Body Material: Brass

Mating Cycles: 500 Cycles

Mounting Style: Cable Mount / Free Hanging

Contact Plating: Gold

Contact Material: Beryllium Copper

Maximum Frequency: 4 GHz

Termination Style: Clamp

Coupling Mechanism: Bayonet

Contact Termination: Clamp

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 60 C
