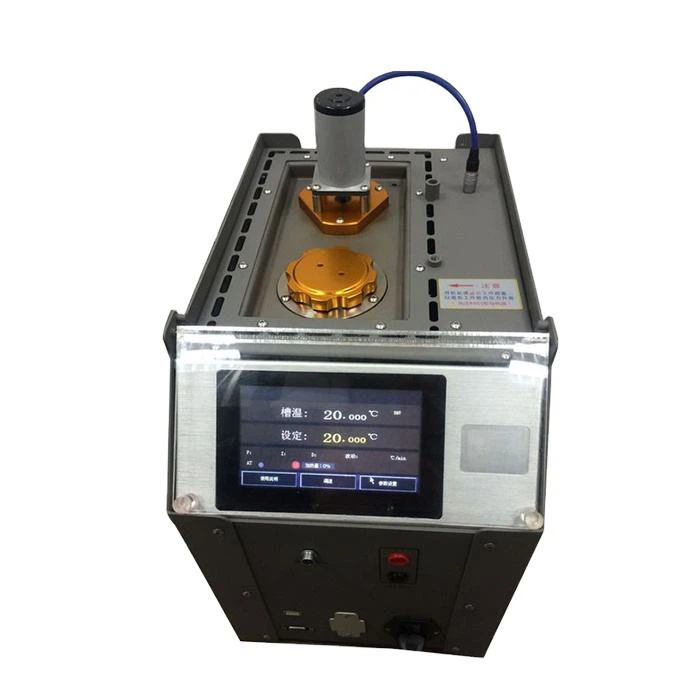

Huazheng HZYW1151 Transformer Oil Level Thermometer Detection Device (RT ~ 250 ℃ ~ 300 ℃)

Performance:

Temperature control range: Room temperature ~ 250 ℃ Up to 300 ℃ for a short time

Temperature volatility: ±0.01℃/10min

Temperature uniformity: Vertical temperature difference: 0.01℃

Evaluation error: <0.1℃

Temperature display resolution: 0.0 0 1°C

Heating time: Room temperature～100 ℃ 30min

Cooling rate: 1 °C /min

Dimensions

W: 230mm

h: 500mm

D: 390mm

Internal dimensions

Working chamber diameter: 50 mm

Working chamber depth: 200 mm

Weight: 17kg

Temperature Sensor: Precision Pt100 platinum thermal resistance

Cavity capacity: about 2 liters

Temperature Controller: Self-developed high-precision temperature controller, the highest resolution is as high as 0.001℃

Automatic protection system: Ultra-high and ultra-low temperature protection, sensor disconnection automatically stops heating

Power supply: AC220V 50Hz

Maximum current: 15A
