Huazheng HZTRF500-0.0005 Capacitor High Voltage Divider (50Hz-200Hz)

The operating conditions of the system

Altitude: ≤ 2000 meters

Ambient temperature: -10 ° C ~ +45 ° C

Relative humidity: <90% (-10-40 °C)

Maximum daily temperature difference: 30 ° C

Atmospheric pressure: 0.1MPa

Atmospheric humidity: 11g/m3

Earthquake intensity: ≤8 class

Use environment: indoor

Capacitor divider (also as a coupling capacitor)

Rated frequency: 50hz-200hz

Cooling mode: onan

Stage: 2

Single capacitance: 1000pf, single resistance: 500M

Rated capacitance: 500pf rated electrical resistance: 1000M

Rated AC voltage: 500kV rated DC voltage: 500kV

Nominal AC partial voltage ratio: 2000 / 1 nominal DC partial voltage ratio: 10000 / 1

Running time: long time

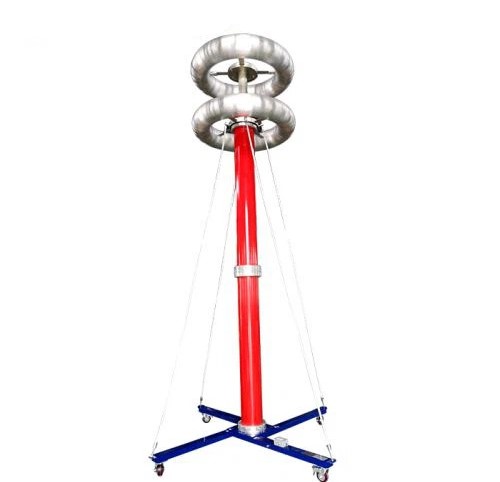

The Dielectric loss: ＜ 0.2% AC / DC voltage divider picture

Temperature coefficient: ＜ 0.0004

Overvoltage capacity: the overvoltage shall not cause any insulation damage of the test transformer under the condition of 110% uh for 60s;

Measurement accuracy AC: ＜± 1% measurement accuracy DC: ＜± 0.5%

Running time: long

Top pressure equalizing cover structure: the pressure equalizing cover is made of high-quality LY2 pure aluminum plate, and the welding process adopts sub arc welding machine to ensure that aluminum oxidation does not occur when placed in the air for a long time. Its radius of curvature contains 550kV power frequency voltage, and corona does not occur on the pressure equalizing cover. In particular, the parts arranged above require hot-dip galvanizing after metal processing to prevent iron oxidation in the air, Over a long period of time, the above components will be oxidized, resulting in corona discharge.

Volume: φ250/φ850×2600㎜

Weight: ＜ 250kg
