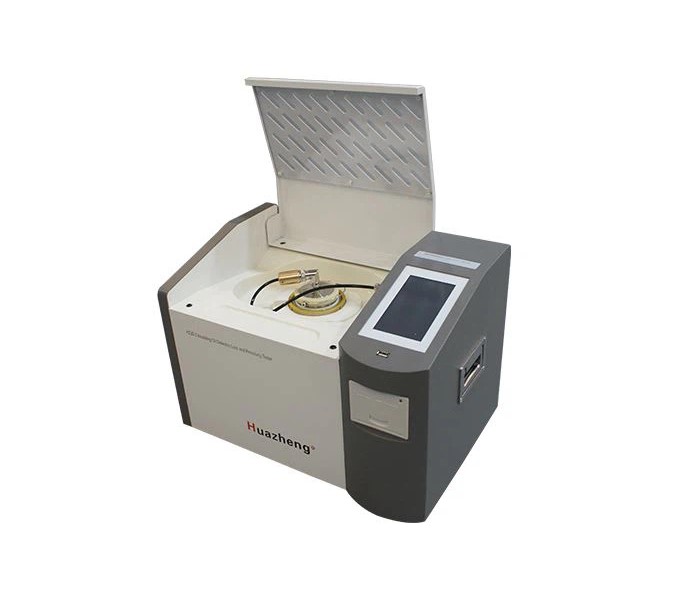

Huazheng HZJD-2 Insulating Oil Dielectric Loss And Resistivity Tester (200pF, 20TΩm)

Voltage supply: AC 220V±10%

Power frequency： 50Hz/60Hz ±1%

Measuring range：

Electric capacity 5pF～200pF

Relative Permittivity 1.000～30.000

Dielectric loss factor 0.00001～100

DC Resistivity 2.5MΩm～20TΩm

Measuring accuracy：

Electric capacity ± (1% of measured value+0.5pF)

Relative Permittivity ±1% of measured value

Dielectric dissipation factor± (1% of measured value+0.0001)

DC Resistivity ±10% of measured value

Resolution：

Electric capacity 0.01pF

Relative capacitivity 0.001

Dielectric dissipation factor0.00001

Measured temperature range：0～120℃

Temperature measurement error：±0.5℃

Test Voltage AC(RMS)： 500～2000V Continuously adjustable, frequency 50Hz

Test Voltage DC： 300V～500V Continuously adjustable

Power consumption：100W

External dimensions： 500×360×420

Total weight： 22Kg
