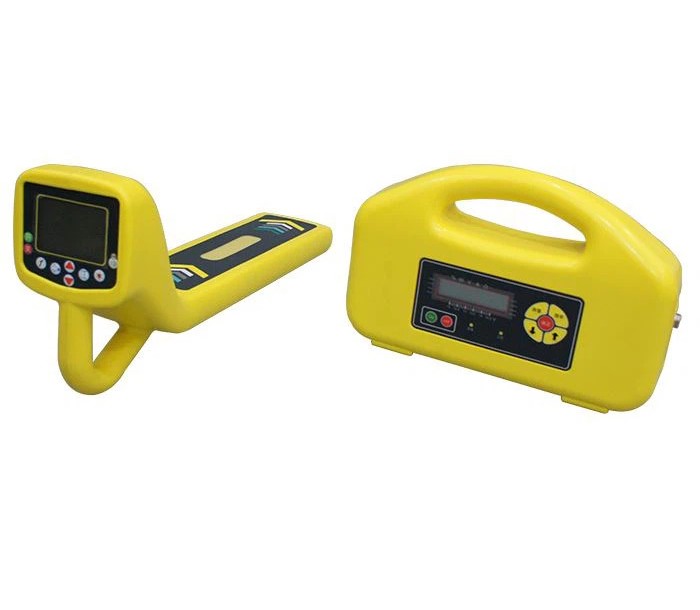

Transmitter:
Function: to apply the location signal of a certain frequency onto pipelines
Output modes: induction, direct link, clamping
Working frequencies: 128Hz, 512Hz, 1KHz, 2KHz, 8KHz, 33KHz, 65KHz, 83KHz
Frequency configuration at various modes:
Induction mode：65KHz, 83KHz
Direct link mode：128Hz, 512Hz, 1KHz, 2KHz, 8KHz, 33KHz, 65KHz, 83KHz
Clamping mode：33KHz
Maximum power output：10W
Maximum voltage output：60V
Maximum current output：1A
Power supply: dual power supply, Lithium battery pack (energy-efficient and environmental-friendly)
Continuous working time:
1W 12 hours
5W 8 hours
10W 5 hours
Weight：2.6Kg
Ambient temperature：-20℃-50℃
Quality standard：ISO9001：2008
Receiver:
Purpose: location of underground pipelines and cables (able to measure the position, runningdirection, depth, and current of underground pipelines)
Location modes:
Peak mode: two horizontal coils used
Broad peak mode: one horizontal coil used
Valley mode: one vertical coil, having the function of left and right orientation
Receive frequencies: 50Hz, 100Hz, radio, 128Hz, 512Hz, 1KHz, 2KHz, 8KHz, 33KHz, 65KHz, and 83KHz
Gain control: automatic gain, range of 0-100dB
Location accuracy: 5% of depth (range of depth: 0-3m)
10% of depth (range of depth: >3m)
Measurement accuracy of currents: ≤5% of actual current
Range of measurement: 0-6m
Power supply: Lithium battery pack (energy-efficient and environmental-friendly)
Working time: an average of 8 hours
Weight: 1.8kg
Ambient temperature: -20℃-50℃
Quality standard: ISO9001：2008
