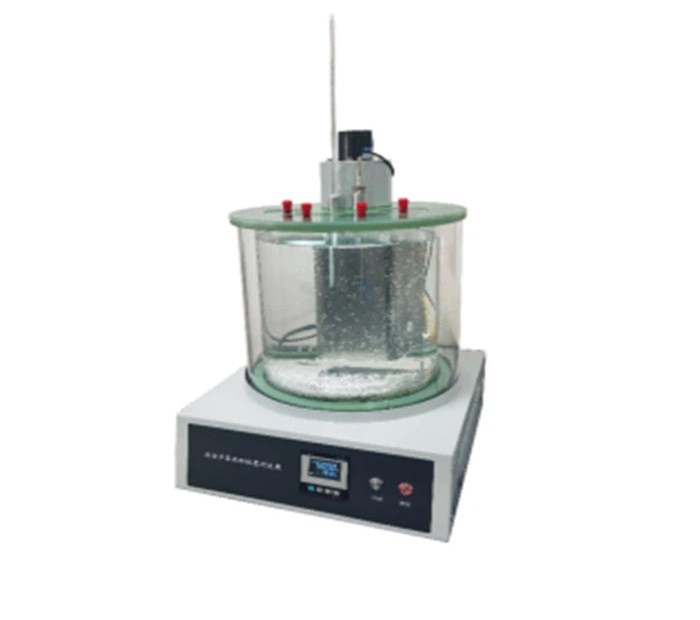

Huazheng ASTM D2170 Asphalt and Bitumen Kinematic Viscometer (150℃ ~ 200℃)

Power supply: AC (220±10%) V, 50 Hz

Maximum power consumption: 1800 W

Heating power: 1700W

Temperature range: Ambient ～135℃(180.0℃)

Temperature control accuracy: ±0.1℃

Mercury thermometer:

Rod type; scale division is 0.1 ℃; Temperature range is 100℃~150℃

Scale division is 0.1 ℃; Temperature range is 150℃~200℃;

Bath capacity: about 23 L

Stirring motor: power: 6W, speed: 1200 RPM

Suitable environment: 15℃～35℃

Relative humidity: ＜85％

Temperature sensor: Platinum resistance; Pt100

Capillary viscometer: One group of Cannon-Fenske Reverse Flow capillary viscometers; 7 pieces in total. They are N0.200, 300, 350, 450, 500 and 600 (The inner diameters of R tube of them are 1.02, 1.26, 1.48, 1.88, 2.20, 3.10 and 4.00 mm respectively).

Overall dimension: 530mm×400mm×670mm (Bath is included)
