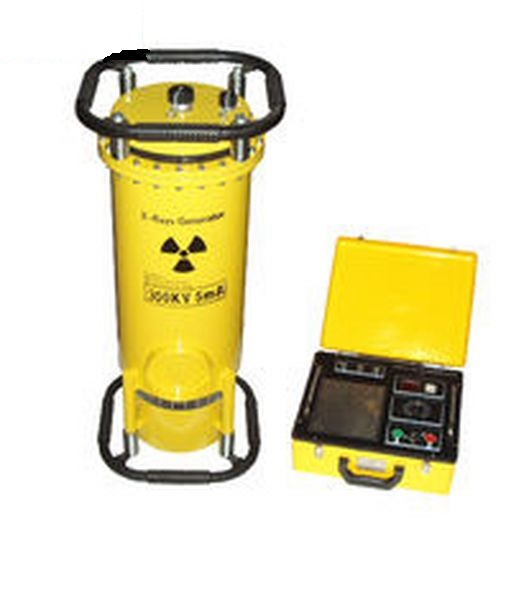

XXQ-3205 Huatec Directional radiation portable X-ray flaw detector for aluminum, rubber
Feature:
Checking the software and hardware itself after start the machine
Excellent anti-jamming performance, which can adapt for field operation without power supply, because of the motor supports
Can adjust exposure parameters with keys ( easy operation.)
Has the function of Delay time opening HV. Convenient for operator keep away from dangerous field
Can adjust high voltage slowly for protecting X-ray generator
Automatically controlling according to 1:1 working and rest operating way, the longest continuous exposure period is 5 minutes.
Including complete protecting system: over KV, over KV, low mA, over mA, over temperature and optical-sound alarming
Convenient for repairing and maintenance
Much more Substance for structure designing, much more convenient for local operation
Time can be changed for±0.3 according to the power supply net to make the exposure more precise
Specification:
Output voltage (Kv) | Input (KW) | Focus spot (mm) | Beam angle | Max penetration (mm) | Weight (KG) | Dimensions (mm) | ||
Generator | Controller | Generator | Controller | |||||
180-320 | 3.2 | 4.0X4.0 | 40°+5° | 53 | 42 | 18 | 335x335x835 | 350x290x160 |
Standard Delivery
Directional glass X-ray tube | 1 Pcs | |
Generator | 1 Set |
|
High voltage joins cable | 1 Pcs | 25 Meters |
Controller | 1 Set |
|
Power cable | 1 Pcs | 10 Meters |
Grounding cable | 1 Pcs | 5 Meters |
Accessories | 1 Set |
|
(Including: alarm lamp, 1 Pcs; lead letter, 1 box; Film dark cassettes 5 pcs; intensifying screen 5 pcs; Wire penetrameter (IQI) 1 set; fuse1 pc) | ||
