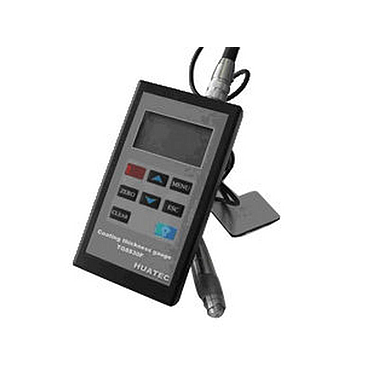

HUATEC TG8831FN Magnetism and backset automatic 9V batteries Coating Thickness Gauge

Measuring range

F400:0~400μm, N400:0~400μm, F1:0~1250μm, F1/90:0~1250μm,

N1:0~1250μm, F10:0~10000μm, CN02:10~200μm,

Measuring accuracy

1 point calibration : ±(2%+1)2 point calibration : ±(1%+1)

Calibration

1 point calibration /2 point calibration /basic calibration

Display resolution

0.1um (0~99.9um) / 1um (Over 100um)

Weight

250g(including battery package )

Operation environment

Temperature: 0℃~50℃ humidity: 20%RH～90%RH

Operation mode

Direct testing mode and block statistics mode

Measuring mode

continuous/single

Shutdown mode

manual/automatic

Operation alarm

Ring music to alarm mistake

Signal Dealing

Threshold

Limits setting and automatically alarm measured values out of limit

Data analysis

Analyzing a batch of measuring values via histogram

Statistic function

Mean/ Standard deviation / Number of measurements/ Maximum/ Minimum

Data Merory

Thickness values

500 measuring data

Delete

Single doubtful data / All data of one group

Power supply

Battery

9V Nickel-hydride/alkaline batteries

Power battery inspection

low voltage indication

Standard delivery

Main unit

1

Integrated probe((N 1 or F1 )

1

Calibration foil set

4

Calibration base set

1

9V alkaline battery

1

Instruction manual

1

Optional accessories

probe

F400, N400, F1/90, F10, CN02
