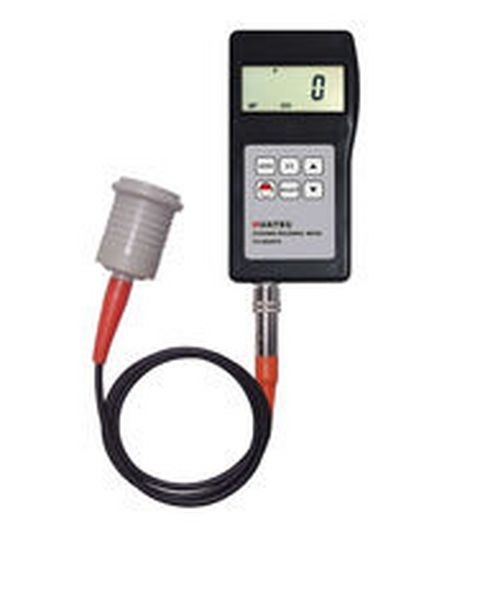

HUATEC TG8829F Coating Thickness Gauge TG8829F For Non Conductive Coating Layers 12mm

- With separate probe(s)

- Function: TG-8829F (ferrous substrate)

- Operating principle: magnetic induction

- Measuring range:0-12000um/

- Resolution; 0.1/1

- Accuracy: ±1-3%n or ±2.5um

- Min. measuring area: 30mm

- Min. sample thickness: 0.3mm

- Battery indicator: low battery indicator

- Metric/ imperial: convertible

- Power supply: 4x1.5V AAA(UM-4)battery

- Auto power off

- Operating conditions:0-+45℃(32℉-104℉), ≤90%RH

- Dimensions: 126x65x27mm

- weight: 81g(not including battery)

Optional accessories: other range 0-200um to 15000um

1. TG-8829F can measure the thickness of non-magnetic coating layers (aluminum, chrome, copper, ename1, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel)

- Main unit(1250um) 1

- F type probe 1

- F calibration base set 1

- Calibration foil set 1set (4 foils)

- Carrying case 1

- Instruction manual 1

- Cable and software for RS-232C

- Customized testing range
