Display 128X64 Pixel LCD with backlight
Measuring range (in two function modes of Standard mode and through coating mode) Standard mode 0.8 mm-- 300.0 mm in steel depending on the probe
Special request can reach measuring range up to 500mm
Through coating mode 2.5 mm – 18.0 mm (Probe PT-08 and PT-12 )
Tolerance +/-0.05 mm in steel
Display resolution 0.01 mm( Less than 100.0 mm )
0.1mm( over 100 mm )
Built-in standard block 4.00 mm
Memory 500 datas in 5 groups, memory does not lose after powering off
Velocity range 1000-9999 m/s
Power 2 pcs 1.2 V AAA batteries
Outside dimension 149X73X32 mm
Net Weight 160 g
FEATURES
- Automatic self-calibration
- Couplant indicator
- Automatic power off in 5 minutes and manual power off function
- High-low limit alarm
- LCD brightness adjustable
- Through coating capability
- Low battery indicator
- Two points calibration
- Metric/imperial optional
- Dataview for PC communication
STANDARD DELIVERY

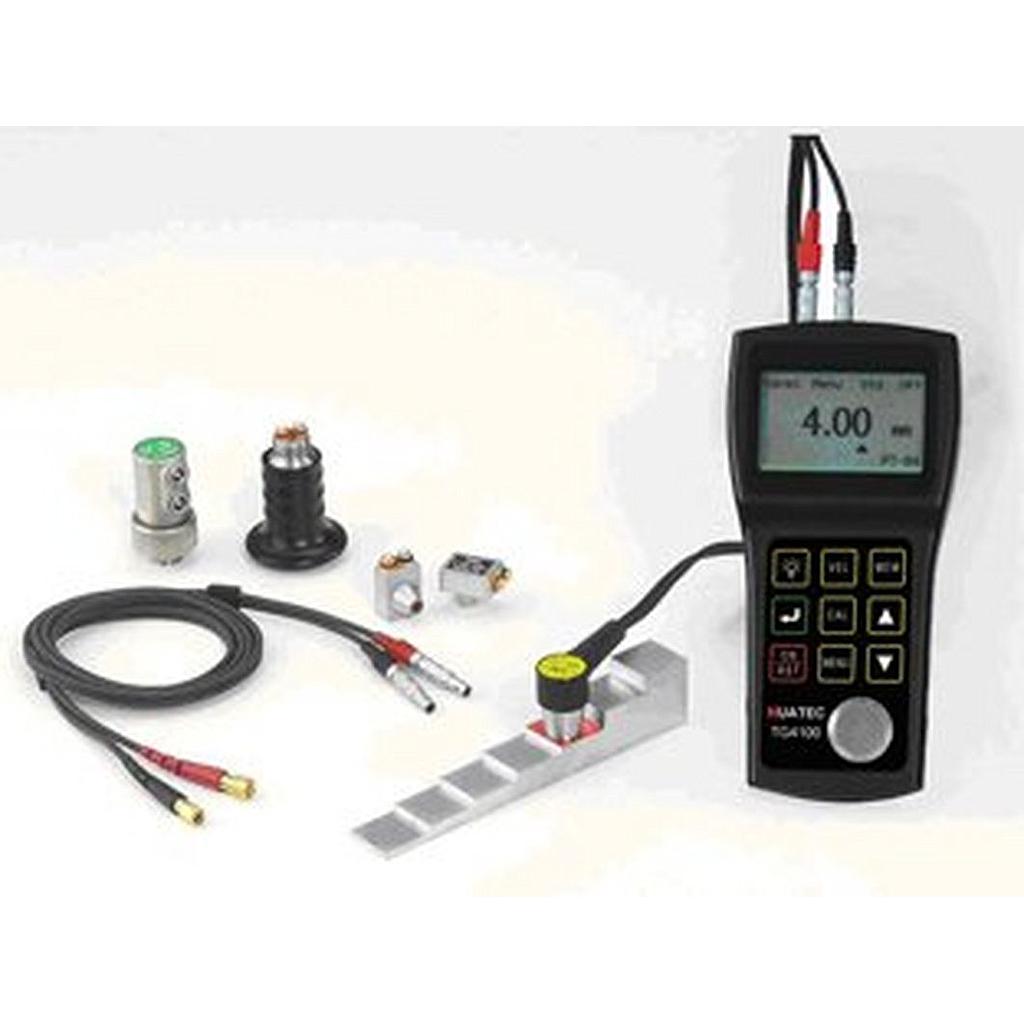

Ultrasonic Through Coating Thickness Gauge TG4100 main unit with through coating mode
Hard carrying case
Couplant bottle
Standard 8 mm, 5 MHzprobe PT-08 (0.8-100.0mm-(steel) with cable (through coating mode)
Dataview CD and communication cable
OPTIONAL ACCESSORIES
4 stepssteel test block
7 stepsmetrics steel test block
5 MHz, 4 mm contact probe
10 MHz, 4 mm, contact probe
5 MHz high temp. probe
Probe cables
Water proof housing
PROBE OPTIONAL For Digital Ultrasonic Thickness Gauge TG4100
Probe model Frequency Contact area Testing Range (steel) Contact Temp.
Cast iron probe ZT-12 2MHz 16.2mm 4.0-300.0mm --10--60℃
Standard probe PT-12 5MHz 12mm 1.0-200.0mm --10--60℃
Standard probe PT-08 5MHz 10mm 0.8-100.0mm --10--60℃
Small probe PT-06 7.5MHz 7.6mm 0.8-30.0mm --10--60℃
Small probe PT-04 10MHz 5mm 0.8-20.0mm --10--60℃
High temp probe GT-12 5MHz 14mm 4.0-80.0mm up to 300℃
