Display: 128X64 Pixel LCD with backlight
Measuring range: (in two function modes of Standard mode and through coating mode)
Standard mode: 0.8 mm-- 300.0 mm in steel depending on the probe. Special request can reach measuring range up to 500mm
Through coating mode: 2.5 mm – 18.0 mm (Probe PT-08 and PT-12 )
Tolerance: +/-0.05 mm in steel
Display resolution: 0.1 mm
Built-in standard block: 4.00 mm
Memory: 500 datas in 5 groups, memory does not lose after powering off
Velocity range: 1000-9999 m/s
Power: 2 pcs 1.2 V AAA batteries
Outside dimension: 149X73X32 mm
Net Weight: 160 g
FEATURES
- Automatic self-calibration
- Couplant indicator
- Automatic power off in 5 minutes and manual power off function
- High-low limit alarm
- LCD brightness adjustable
- Through coating capability
- Low battery indicator
- Two points calibration
- Metric/imperial optional
- Dataview for PC communication
STANDARD DELIVERY

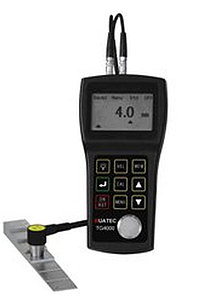

Ultrasonic Coating Thickness gauge TG4000 main unit with through coating mode
Hard carrying case
Couplant bottle
Standard 8 mm, 5 MHzprobe PT-08 with cable (through coating mode)
Dataview CD and communication cable
