Operating Principle: Magnetic Induction (F)
Measuring Range: 0~200 um / 0~8 mil
Resolution: 0.1 um
Min. Radius Workpiece: convex 2 mm / concave 4 mm
Min. Measuring Area: 2 mm
Min. Sample Thickness: 0.1 mm
Accuracy: ± 1~3%n or ± 2.5 um
Auto Power Off
Metric / Imperial: Convertible
Battery Indicator: Low Battery Indicator
Operating Conditions: Temp. 0~40 °C, Humidity: 10~90 %RH
Power Supply: 4 x 1.5 V AAA (UM-4) Battery
Dimensions: 140 x 72 x 34 mm ( 5.5 x 2.8 x 1.3 inch )
Weight: 215 g (Not Including Batteries)
Standard Accessories:

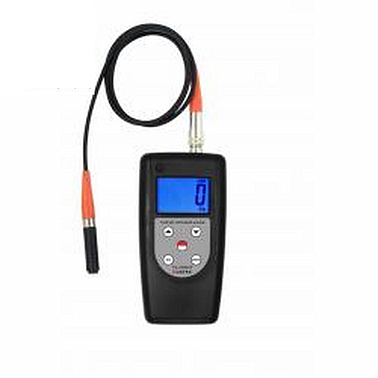

1. Main Unit
2. Probe (F Type)
3. Calibration Base Set (F Type)
4. Calibration Foils (1 set, 4 pieces)
5. Carrying Case
6. Operation Manual
Option:
1. USB, RS-232C data cable with software
2. Bluetooth data out put with software
