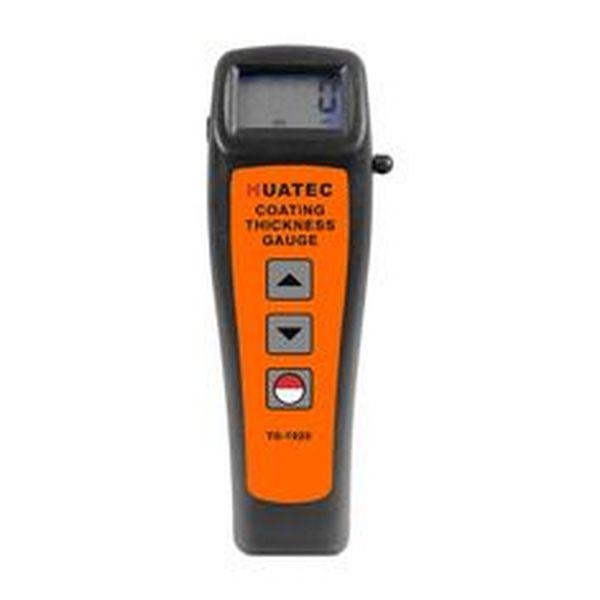

HUATEC TG1920 Pocket new model Coating Thickness Gauge with Three Keys (0-1250um)
ManufacturerHUATEC(View more products from this manufacturer)
ModelTG1920
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Description:
Automatic substrate recognition
In built probe(s)
Operating principle: magnetic induction/eddy current (F/NF)
Measuring range:0-1250um/0-50mil
Resolution: 0.1(0-99.9um), 1 (100um up)
Accuracy: ±1-5%n or ±3.5um whichever is the greater
Min. measuring area: 6mm
Min. sample thickness: 0.3mm
Battery indicator: low battery indicator
Metric/ imperial: convertible
Power supply: 2x1.5V AAA(UM-4)battery
Manual or automatic power off
Testing method: Single or continuous
Operating conditions:0-+45℃(32℉-104℉),≤90%RH
Dimensions: 102x35x23mm
Weight: 40g(not including battery)
Optional accessories: other range 0-200um to 15000um
Standard Delivery of Coating Thickness Gauge TG1920:
Main unit(1250um) 1
F type probe 1
N type probe 1
F calibration base set 1
N calibration base set 1
Calibration foil set 1set (4 foils)
Carrying case 1
Instruction manual 1
Optional Accessories of Coating Thickness Gauge TG1920:
Cable and software for RS-232C
Bluetooth
Customized testing range up to 10000um
