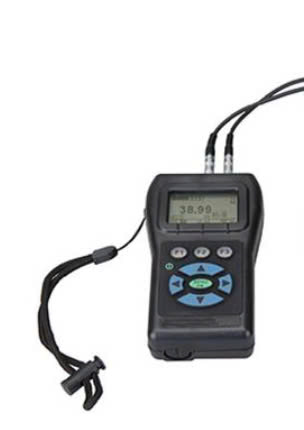

HUATEC TG-5800EX Ultrasonic Thickness Gauge (2mm – 127mm, 0.1mm)

Measuring Range (varies by probe and material):

Without paint: 0.6mm – 508mm

Under paint: 2mm – 127mm

Measuring Resolution: 0.01mm / 0.1mm

Sound Velocity Range: 1000 – 15000mm/s

Units: mm/inch

Calibration: One-point, two-point, and automatic calibration

Receiver: 500kHz – 12MHz (3dB attenuation), Adaptive Gain Control (AGC)

Display: High-resolution LCD (64 × 128 pixels), screen size 53 × 27mm

Signal Capture: Adjustable between 4MHz and 20MHz

Reading Display: 5 digits

Coupling Indicator: No coupling will prompt "No signal"

Alarm Settings:

Max/Min alarm range: 0.01mm – 508mm

Vibration alarms:Features: Vibration alarm. The red, green and blue light indicates that the thickness is qualified, suspicious, and out of tolerance

Power Supply: 2 AA dry batteries

Auto Power Off: Adjust from 1 to 30 minutes, or select "No auto off"

Language: English

I/O Connector: Lemo 00 connector, USB interface

Operating Temperature: -10℃ to +50℃

Storage Temperature: -20℃ to +60℃

Weight: 230g (including batteries)

Overall Dimensions: 127 × 32 × 76mm
