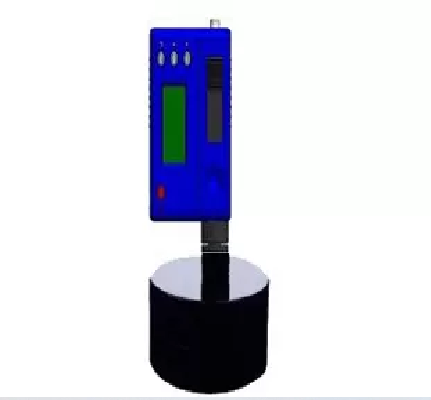

HUATEC RHL-80 Portable Hand Held Leebs Metal Hardness Testers (HL, HB, HRB, HRC, HRA, HV, HS)

Measuring range: HLD(170～960)HRC(17.9～68.5)HV(80～976)HS(30～100) HRA(59～85)HRB(59.6～100)HB(80～651)

Measuring direction: 360°

Hardness scale: HL, HB, HRB, HRC, HRA, HV, HS

Display: LCD, 128×32 matrixLCD

Data memory: 1000 groups (impact times: 10～1)

Range of upper and lower limit: the same as measuring rang

Working voltage: 3.7V Rechargeable Li-Ion battery

Continuous working period: approx. 100 h (no back light on)

Communication interface: RS232

Dimension:145X62X30mm

Weightapprox: 0.5kg

Ordering information:

- RHL80 Main unit: 1

- Small supporting ring: 1

- Nylon brush (A): 1

- High value Leeb test block: 1

- Communication cable: 1

- Instruction Manual: 1

- Instrument Case: 1

- Box Of instrument: 1

- Printer: Optional

- Printer cable: Optional

Datasheet
