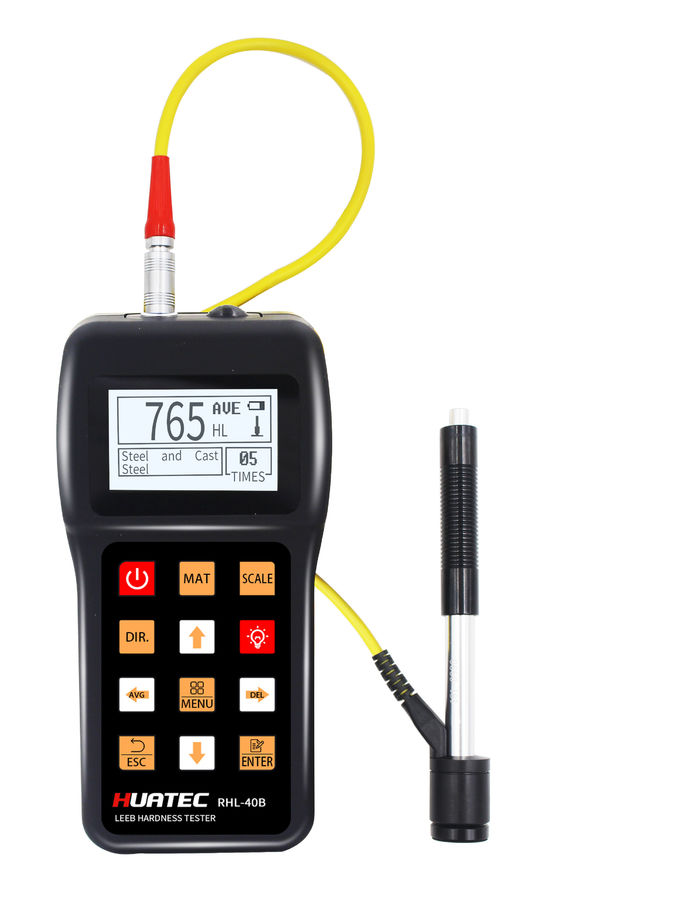

HUATEC RHL-40B Tester Metal Hardness

Measuring range: (170-960)HLD,(17-68.5)HRC,(19-651)HB,(80-976)HV,(30-100)HS,(59-85)HRA,(13-100)HRB

Measuring direction:360°(↓↖↗↘↙→←↑)

Hardness Scale:HL,HB,HRB,HRC,HRA,HV,HS

Display:segment LCD

Data memory:max. 100 groups(relative to impact times 32～1)

Working voltage:3V(2 AA size alkaline battery)

Continuous working period:about 100 hours(With backlight off)

Communication interface:RS232

Standard Configuration

- Main unit:1

- D type impact device:1 (With cable)

- Standard test block:1

- Cleaning brush (I):1

- Small support ring:1

- Alkaline battery:2 (AA size)

- Manual:1

- Instrument package case:1

Optional Configuration

- Cleaning brush (II):1 (For use with G type impact device)

- Other type of impact devices and support rings (Refer to Table 3 and Table 4 in the appendix.)

- DataPro software:1

- Communication cable:1

- Micro Printer:1

- Print cable:1
