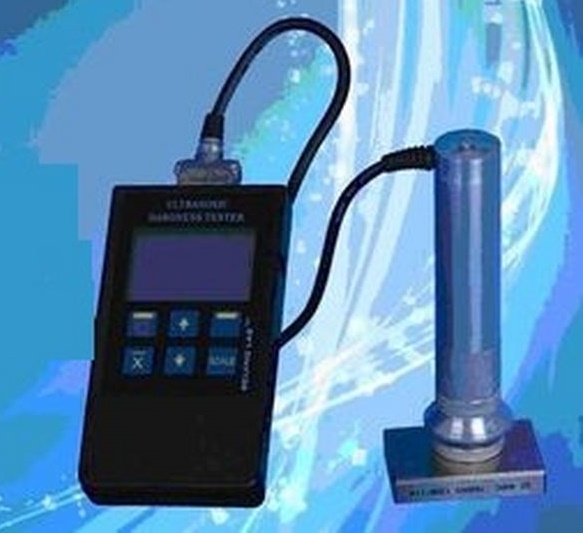

Huatec HUH-1 Ultrasonic Portable Hardness Tester

Name: Huatec HUH-1 Ultrasonic Portable Hardness Tester
Brand: HUATEC
Price: 5760 USD
Availability: OutOfStock

ManufacturerHUATEC

ModelHUH-1

OriginChina

USD 5,760.00

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

- Hardness measurement ranges
Rockwell Scale: 20 - 70
Brinell Scale: 90 - 450
Vickers Scale: 230 - 940
Tensile strength, MPa: 370 - 1740
- Relative measurement error
Rockwell Scale: ± 1
Brinell Scale: ± 3%
Vickers Scale: ± 3%
- Chief dimensions   120x60 x25 mm
- Category temperature range° C: -5 - +40
- Power supply: 2 AA batteries
- Time of continuous work hours: not less than 100 Hours
- Weight of electronic module with sensor: 0.9kg
Include: Hardness tester, Ultrasonic hardness probe 50N, Instruction manual, Probe cable, Battery charger, Carrying case, Hardness block 2pcs

Product information:

It is intended for measuring hardness of metal and alloy articles with Rockwell, Brinell, Vickers. It consists of the dynamic transducer (sensor) and the electronic module.
The principle of tester operation is based on determination of frequency change in free oscillation of the indenter (an acoustic resonator with Vickers diamond pyramid) subjected to the constant force of 50 N.

Advantages:

measuring hardness of both small and large articles
measuring hardness of complexly shaped articles, with hard to reach places, in various spatial positions
convenience and ease of use
PC-connectable via RS-232C interface
high measuring performance
power source discharge indication and display illumination
graphical display with lighting
storing 6000 hardness measurements in the nonvolatile memory
supply of reference blocks on request

Main technical parameters

Hardness measurement ranges Rockwell Scale Brinell Scale Vickers Scale Tensile strength, MPa	20 - 70 90 - 450 230 - 940 370 - 1740
Relative measurement error Rockwell Scale Brinell Scale Vickers Scale	± 1 ± 3% ± 3%
Chief dimensions	120x60 x25 mm
Category temperature range° C	-5 - +40
Power supply	2 AA batteries
Time of continuous work hours	not less than 100 Hours
Weight of electronic module with sensor	0.9kg

Parameters for Ultrasonic hardness probe and Leeb hardness probe

	Ultrasonic hardness probe	Leeb hardness probe
Length	160mm	140mm
Diameter	25mm	25mm
Indention depth	30μm	300 μm
Test force	14.7N	11Nm
Probe testing life	200,000 times	50,000 times
Min.testing thickness (steel)	1mm	12mm
Min. testing radius	5mm	10mm
Max.surface roughness	Ra 2.5 μm	Ra 3.2 μm
Data memory	1000 datas	100 datas
Tesing time	4 second	2 second
