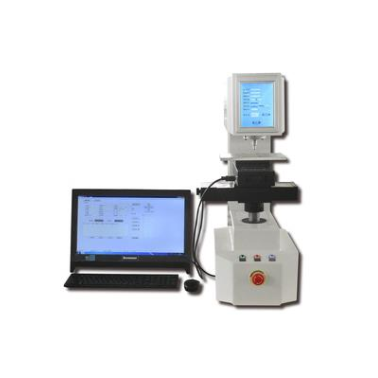

HUATEC HRS-150DX-ZXY Automatic Rockwell Hardness Tester

Rockwell initial test force: 10 KGF (98.07 N)

Superficial Rockwell initial test force: 3.0 KGF (29.4 N)

Rockwell total test force: 60kgf (588N) 100kgf (980N) 150kgf(1471N)

Rockwell hardness scale: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR, HRP, HRS, HRV

Rockwell test range:

HRA:20-88, HRB:20-100, HRC:20-70, HRD:40-77, HRE:70-100,

HRF:60-100, HRG:30-94, HRH:80-100, HRK:40-100, HRL:100-120

HRM: 85-115, the HRR: 114-125

Meet standard: BSEN 6508, ISO 6508, ASTM E18, GB/T230

Dwell time: 0-99s

Hardness resolution: 0.1 HR

Error of test force: < 0.5%

Data output: LCD display

Data store: The measurements are saved on a USB flash drive in EXCEL format

Conversion scale: Lowe's, Brucellae, Vickers

Maximum allowable specimen height: For ordinary sample table, 300mm;With X mobile station, 200mm; 100mm for X/Y moving station

Distance from indenter to machine wall: 200mm

Size: 560 * 280 * 850 mm

Weight: 80kg

Power supply: AC220 + 5%, 50 ~ 60 hz
