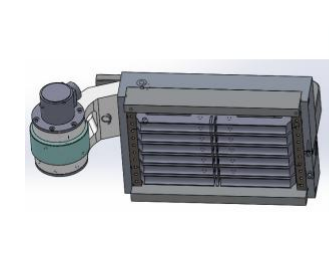

HUATEC HRD-151 Elevator Type Steel Wire Rope Flaw Detector

The entire series can detect the diameter range of steel wire ropes: Φ1.5-300mm(requiressensors of different series specifications)

Relative speed between sensor and steel wire rope: 0.0-6.0 m/s, optimal speed: 0.3-1.5m/sThe optimal gap between the sensor guide sleeve and the steel wire rope is 2-6mm, andtheallowable gap is 0-15mm

Wire breakage defect (LF) detection capability

Qualitative: The accuracy rate of qualitative detection for single centralized brokenwireis99.99%

Quantitative: The number of concentrated broken threads in a single location allowsfor oneorone equivalent thread to be misjudged

Quantitative detection of the number of broken wire roots in a single centralizedlocationwithno error for more than 100 times, with an accuracy rate of ≥ 92%

Quantitative change rate of metal cross-sectional area (LMA)

Detection sensitivity repeatability allowable error: ± 0.055%

Detection accuracy indication allowable error: ± 0.2%

Location (L) detection capability:

Power supply: computer battery powered 5V

Sensor weight: Common specifications<10kg

Environmental temperature: -10 ℃~40 ℃

Atmospheric pressure: 86~106Kpa

Relativehumidity: ≤ 85%
