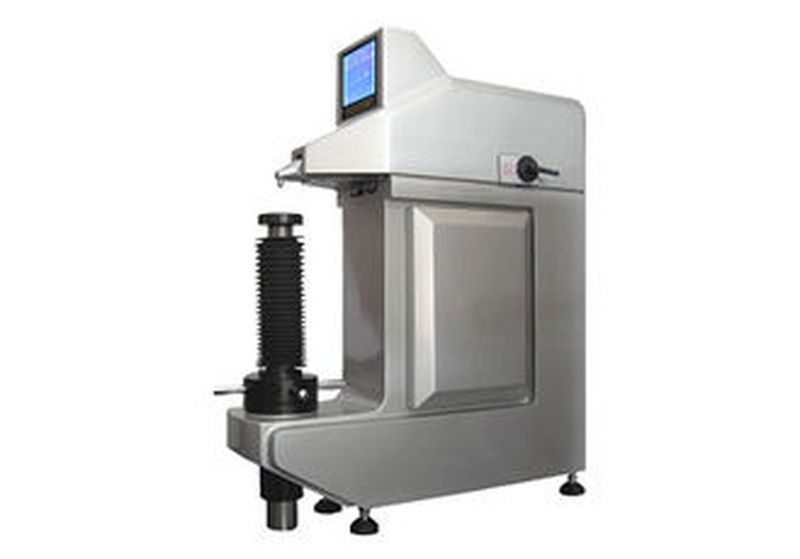

Huatec HR3000 Horizontal protrudent Indenter Digital Rockwell Hardness Tester

Specifications:

- Preload:98.1N (10kgf)
- Total test force:588.4N (60kgf), 980.7N (100kgf), 1471N (150kgf)
- Scales:HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV
- Load dwell duration: 2～50s, can be set and stored
- Resolution :0.1HR
- Display:High definition backlight LCD
- Operation:Menu selectable, Membrane keypad
- Upper/lower limits setting & alarming
- Data statistics: Avg., Max., Min., S, R available
- Curved surface correcting automatically
- Memory: Max 500 items of test results stored automatically
- Data output: RS-232 to micro printer, USB port to external PC
- Testing space:260mm in vertical, 150mm in horizontal
- Dimensions: 710mm×210mm×830mm
- Power supply: AC, 220V/110V, 50～60Hz, 4A
- Net weight: 100kg

Standard configuration:

- Host machine: 1

- Standard hardness block for A scale: 1 pc

- Standard hardness block for B scale : 1 pc

- Standard hardness block for C scale: 1 pc

- ball indenter (1/16″): 1 pc

- 120°cone diamond indenter: 1 pc

- Mounting screws for indenter: 2 pcs

- Flat anvil: 1 pc

- “V ”shape anvil: 1 pc

- Power supply wire: 1 pc

- Screwdriver for indenter mounting: 1 pc

- Dust cover: 1 pc

Optional accessories:

- Short diamond indenter

- Chisel diamond indenter

- Slender diamond indenter

- 1/8″ball indenter and spare steel ball

- 1/4″ball indenter and spare steel ball

- 1/2″ball indenter and spare steel ball

- φ225 anvil

- φ150 anvil

- Standard hardness block for other scales

- Micro printer
