Specifications:

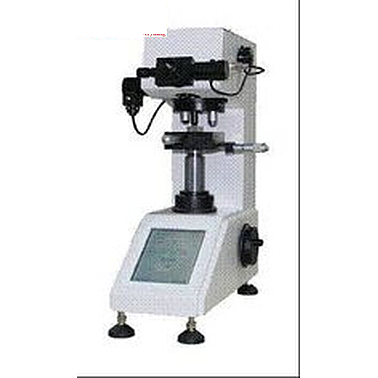

- Product Type: HK-1M
- Standards Conformed to: <GB/T 26704-2011 Pencil Testing>
- Test force (N): 0.245,0.49,0.98,1.96,2.94,4.98
- Minimum test unit: 0.062µm
- Hardness test range (HK): 40-700
- Test force loading: Automatic (loading, dwell, unloading)
- Indenter and lens converters: Automatic
- Test microscope magnification: 100X (for observation) , 200X (for test)
- Test force dwell time: 0~60s,Recommended 10s
- X-Y Test table: Dimension:100*100mm Movement:25*25mm
- Data Output: LCD readout display, built-in printer
- The indenter center-outer wall Distance: 95mm
- Power supply: AC220V+5%,50-60Hz
- Dimensions: 405*290*480mm
- Weight: 25Kg
Standard Accessories:
- Axle weight 1
- Weight 6pcs
- Cross test sets: 1
- Lead holder: 1
- Small Level: 1
- 10X eyepiece test: 1
- Screw driver: 2pcs
- Foot adjustment screw: 4pcs
- Power cable: 1
- Spare fuse (2A): 2pcs
- Product Manual: 1
- Product certification: 1
