HUATEC HG800D Balancer Testing Machine (70 ~ 120.000 vòng / phút; 16 chanel)

Analyzer specifications：

Spectrum range：0.5 Hz~25 kHz

Low frequency：0.17——100Hz

Rotating speed measurement：70~120,000 rpm/min

Vibration measurement range:

- Acceleration value: 250m/s2 0.1m/s2

- Velocity value: 200mm/s 0.1mm/s

- Displacement value: 5000um 1um

- Acceleration envelope: 25m/s2 0.1m/s2

- Voltage:10 V 0.1 mV

Measurement accuracy: +_ 5%, 24bits A/D, Dynamic Range: 90dB

Select input sensor signal: velocity sensor; piezo-electric accelerometer; peak-peak transmitter sensor .etc

Power：24VDC

Dimensions：210×130×40mm, weight：1 kg

Analyzer Operating Environment temperature：-30°- 95°

Normal piezo-electric accelerometer temperature：-35°- 65°

High temperature piezo-electric accelerometer：-35°- 180°

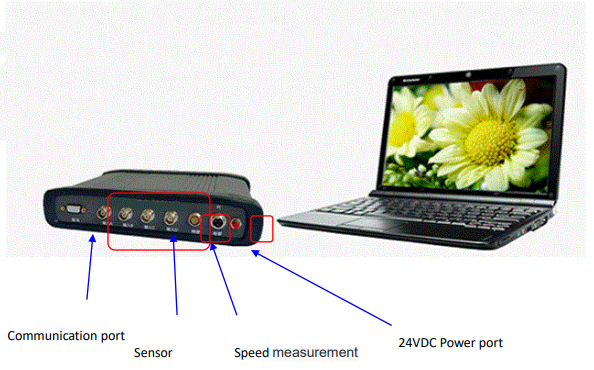

Output: 485 port for communication with PC software

 Datasheet
