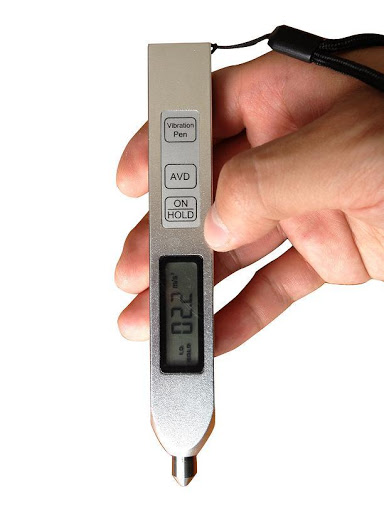

Huatec HG-6430 Portable Digital Vibration Meter For Fast Failure Detecting Of Motor

Specifications:

- Parameter: Acceleration, Velocity, Displacement

- Testing range:

+ Acceleration:0.1m/s2-199.9m/s2(peak)
+ Velocity: 0.1mm/s-199.9 mm/s(RMS)
+ Displacement: 0.001mm-1.999 mm (peak-peak)

- Frequency range

+ Acceleration:10Hz ~ 1kHz(LO), 1kHz ~ 15kHz(HI)
+ Velocity: 10Hz ~ 1kHz
+ Displacement: 10Hz ~ 500Hz

- Accuracy: ±5% ± 2digits

- Display: 3 1/2 digits LCD

- Power supply: two button batteries(LR44 or SR44)

- Battery capacity: Approx. 5 hours working continuously

- Operating temperature: 0℃ ~ 40℃

- Humidity:<85%

- Dimension: 150mm×22mm×16mm

Standard Delivery:

- Main uni.

- Screwdriver

- Batteries SR44LR44 1.5V

- Box

- Document
