Specifications:
- Sensor: Piezoelectric Transducer
- Measuring Parameters & Range:
+ Acceleration: 0.1~400 m/s² 0.3~1312 ft/s² 0.0~40 g Equivalent Peak
+ Velocity: 0.01~400 mm/s 0.004~16.0 inch/s True RMS
+ Displacement: 0.001~4.0 mm 0.04~160.0 mil Equivalent Peak-peak
+ Frequency: 5 Hz ~ 1k Hz
- Frequency Range:
+ Acceleration: 10 Hz ~ 10k Hz
+ Velocity: 10 Hz ~ 1k Hz
+ Displacement: 10 Hz ~ 1k Hz
- Accuracy 5 % of Reading + 2 digits
- Metric / Imperial Conversion
- Analogue Output AC Output 0~2.0 V Peak Full Scale (Load Resistance: Above 10k)
- Max. Value Hold
- Power Off Manual Power Off or Auto Power Off
- Battery Indicator Low Battery Indicator
- Data Output USB, RS-232, Bluetooth
- Operating Conditions Temperature: 0~50 °C Humidity: <90 rh="" power="" supply="" 2="" x="" 1="" 5v="" aa="" size="" um-3="" battery="" br=""> - Dimensions 130 x 76 x 32 mm
- Weight 340 g (Not Including Batteries)
Standard Accessories:

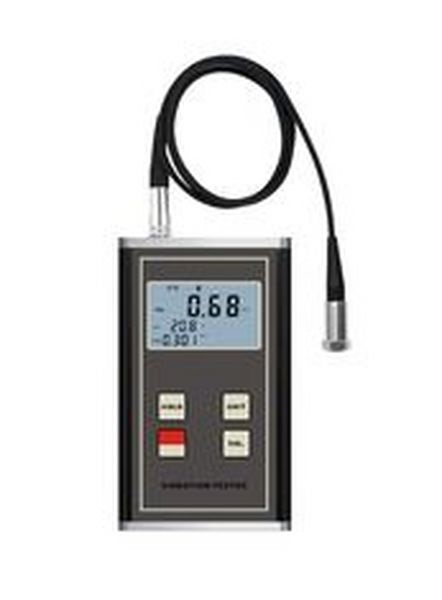

1. Vibration Meter Main Unit
2. Magnetic Suction Seat
3. Piezoelectric Transducer
4. Probe (Cone)
5. Probe (Spherical)
6. Carrying Case
7. Manual Book
Optional Accessories:
1. Headset
2. USB, RS-232 data cable with software
3. Bluetooth data out put with software
