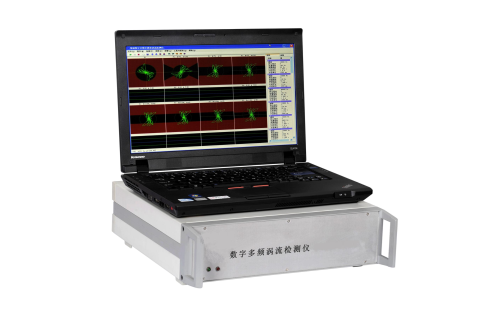

HUATEC HEF-24ET Multi-frequency Remote Field Eddy Current Tester (50 Hz ~ 10 MHz)

Frequency range: 50 Hz ~ 10 MHz

Two independently selectable frequencies

3 mixing unit (automatic mixer)

Real-time trace memory of 4 eddy current signals

Gain range: 0 ~ 99 dB continuously adjustable, with 0.1 dB step resolution

Phase rotation: 0 ~ 359° continuously adjustable, 1° precision; real-time display of impedance changes, signal amplitude, and phase values during adjustment

Adjustable probe stimulus, 1–8

Fast digital/analog electronic balance

Four-trace impedance plane and eight internal belt curve analysis display

Time-base scan display

Delayed blanking function of memory path

Menu-driven human-machine interface (English)

Operating system: Windows XP, Windows 7, Windows 8

Automatic signal amplitude and phase measurement, with slow (adjustable) playback of eddy current signals

Digital filtering: Low-pass 0 Hz ~ 2000 Hz, High-pass 0 Hz ~ 2000 Hz
