Operating frequency: 60KHz
Display screen: 240X320 pixels TFT-LCD
L*B*H: 180*80*35 mm
Instrument case: Anti-intense impact, water-proofing polyester
Weight: 245g
Power supply: High capacity, high performance lithium polymer battery
Measuring range: 1%IACS—105%IACS (0.58 MS/m -61MS/m)
Distinguishing rate: 0.01% IACS
Probe compensated: 0.05mm
Measuring accuracy: 0°Cto 50°C
23%IACS :±0.25%IACS
100%IACS :±0.5%IACS
Language Chinese, English
PC communication: USB

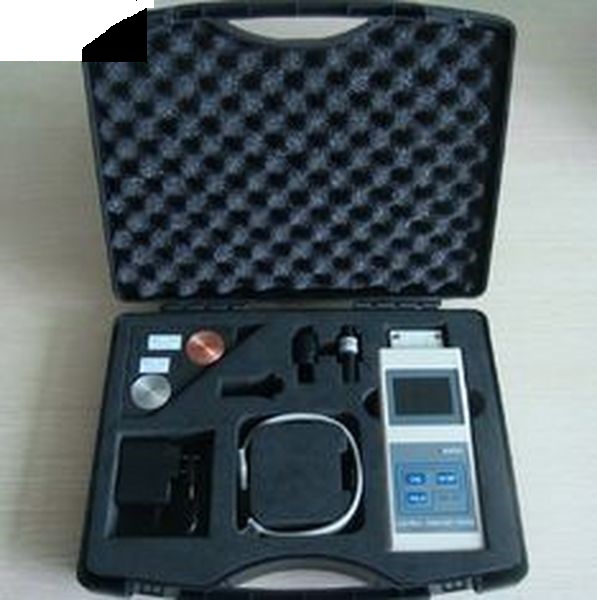

Fitting: Portable box; probe; probe in cable; operating manual; conductivity standard sample; adapter
Probe Diameter: 12.7mm (Applicable to minimum measuring area diameter at 60KHz is13mm.)
Detailed Product Description
HEC-100series of eddy current electrical conductivity meters, which are designed for quick & convenient measurement of material property, such as material separate, quality control, material state check and so on. The products use the electromagnetism testing principle, can testing objects focus on non-ferromagnetic materials.
HEC-100 series products use 60 KHz (aviation industry standard) to inspirit, the testing data can be read in two kinds of unit (%IACS and MS/m). The products can test electrical conductivity and resistivity at the same time, and they include the intelligent temperature and lift-off compensations, thus can guarantee the testing accuracy of each measurement. The big typeface and the back light illumination designs are advantageous for users to take the testing data even in low light condition. The products use the high property battery to make sure it keeps more running time, and because of their mini-size, you could easy to carry and to grasp hold. The design of the products are more advantages, such as users can replace the probe in the outdoor, do not need to return the company to adjust the probe into matching the meter. About HEC-100, two kinds of operate languages (English &Chinese) satisfy different national demand. It can store 1000 measurement data, moreover, users can use USB connect the meter to a PC to create testing report.
Application:
★Absolute measurement of electrical conductivity of nearly all non-ferrous metals；(Ti – Ag)
★In the aerospace and automotive industry, monitor the process of heat treatment, the strength and hardness of aluminum alloy；
★Test the conductivity whenthe aluminum have not been oxidized；
★Measurement the purity of non-ferrous metals；
★Test the resistivity ofconductivematerials；
★Analyze thermal properties ofmaterials.
HEC-102 Technical parameters
|
NAME |
CONTENT |
NOTE |
|
|
Measurement technology |
Eddy current |
|
|
|
Operating frequency |
60KHz |
|
|
|
Display screen |
240X320 pixels TFT-LCD |
4 kinds of background color |
|
|
L*B*H |
180*80*35 mm |
|
|
|
Instrument case |
Anti-intense impact, water-proofing polyester |
Match the fixed belt the leather protective covering |
|
|
Weight |
245g |
Contain battery |
|
|
Power supply |
High capacity, high performance lithium polymer battery |
Not back light illuminate may keep on working about 100 hours. |
|
|
Measuring range |
1%IACS—105%IACS(0.58 MS/m -61MS/m) |
|
|
|
Distinguishing rate |
0.01% IACS |
|
|
|
Probe compensated |
0.05mm |
|
|
|
Measuring accuracy |
0°Cto 50°C 23%IACS :±0.25%IACS 100%IACS :±0.5%IACS |
|
|
|
Temperature compensation |
0°C～50°C |
Automatic compensation function |
|
|
Normal work environment |
Relative humidity |
0～95% |
|
|
Operating temperature |
0℃～50℃ |
|
|
|
Language |
Chinese, English |
|
|
|
PC communication |
USB |
|
|
|
Fitting |
Portable box; probe; probe in cable; operating manual; conductivity standard sample; adapter |
Conductivity sample installs in the instrument, to verify and guarantee temperature compensation |
|
|
Probe Diameter |
12.7mm (Applicable to minimum measuring area diameter at 60KHz is13mm.) |
|
|
|
Readingstorage |
Preserve 1000 survey data |
|
Hand-held eddy current conductivity tester for NF-metals with automatic normalization of the conductivity values to 20°C through temperature sensor.
HEC-101 Technical parameters
|
NAME |
CONTENT |
NOTE |
|
|
Measurement technology |
Eddy current |
|
|
|
Operating frequency |
60KHz |
|
|
|
Display screen |
Monochrome |
|
|
|
L*B*H |
180*76*35 mm |
|
|
|
Instrument case |
Anti-intense impact, water-proofing polyester |
Match the fixed belt the leather protective covering |
|
|
Weight |
300g |
Contain battery |
|
|
Power supply |
High capacity, high performance lithium polymer battery |
Not back light illuminate may keep on working about 100 hours. |
|
|
Measuring range |
1%IACS—105%IACS(0.58 MS/m -61MS/m) |
|
|
|
Distinguishing rate |
0.1% IACS |
|
|
|
Measuring accuracy |
5°Cto 40°C 23%IACS :±0.5%IACS 100%IACS :±8%IACS |
|
|
|
Temperature compensation |
5°C～40°C |
Automatic compensation function |
|
|
Normal work environment |
Relative humidity |
0～95% |
|
|
Operating temperature |
5℃～40℃ |
|
|
|
Language |
Chinese, English |
|
|
|
Fitting |
Portable box; probe; probe in cable; operating manual; conductivity standard sample; adapter |
Conductivity sample installs in the instrument, to verify and guarantee temperature compensation |
|
|
Probe Diameter |
12.7mm (Applicable to minimum measuring area diameter at 60KHz is13mm.) |
|
