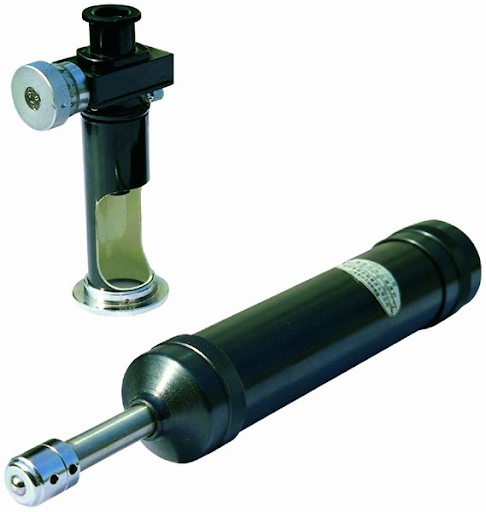

HUATEC ASTM E10 FERROUS METAL PORTABLE BRINELL HARDNESS TESTER HBX-0.5

Feature & Use:
Small volume, convenient for carrying, easy operation
Precision conforms to GB/T 231.2, ISO 6506-2 and ASTM E10
It can be used to determine the Brinell hardness of ferrous metals with elastic modulus approximate to 2×105 MPa. It is especially suitable to determine the hardness of heavy parts on the spot.

Specifications:
Measuring range: 100-400HBS
Steel ball diameter: 10mm
Impact capacity: 4.9J
Dimensions: Φ55 x 370mm
Weight: approx. 3.3kg

Standard accessories:
Portable Brinell standardized block: 1 pc.
20X Readout microscope: 1 pc.
