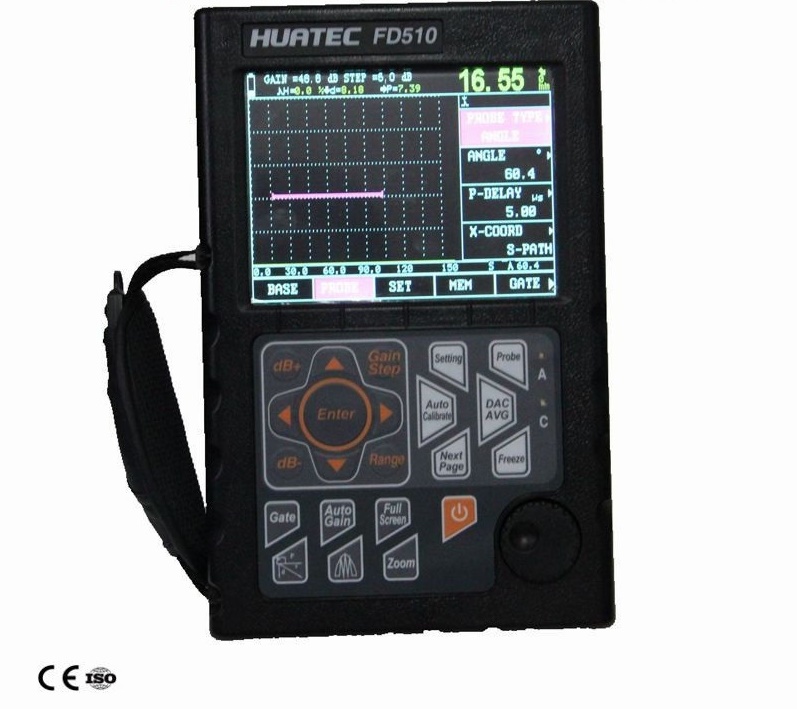

HUATEC FD510 Portable Digtal flaw detector ultrasonic (0 ~ 6000 mm, 110dB Gain)

Measuring Range: 0 ～ 6000mm
Material Velocity(m/s): 1000 ～ 15000
Gain(dB): 0 ～ 110
Frequency Range(MHz): 0.5 ～ 15
Memory: 500
Vertical Linearity Error: ≤3%
Horizontal Linearity Error: ≤0.1%
Dynamic range: ≥32dB
Resolving Power: ≥36dB
Measurement Mode: Single,Dual,Thru
Zero(μs): 0.0 ～ 99.99
Port Type: BNC
Dimenison: 240×156×48 mm
Weight: 1 kg

Standard Delivery:
+ Main unit
+ 2.5MHZ-ф20 straight probe
+ 4MHZ-8x9mm, 60degree angle probe
+ 4A/9Vpower adapter
+ Probe connection cable (BNC to BNC)
+ Probe connection cable (BNC to Lemo 00)
+ Instruction manual
+ Carrying case
+ RS232-USB converter

 DATASHEET
