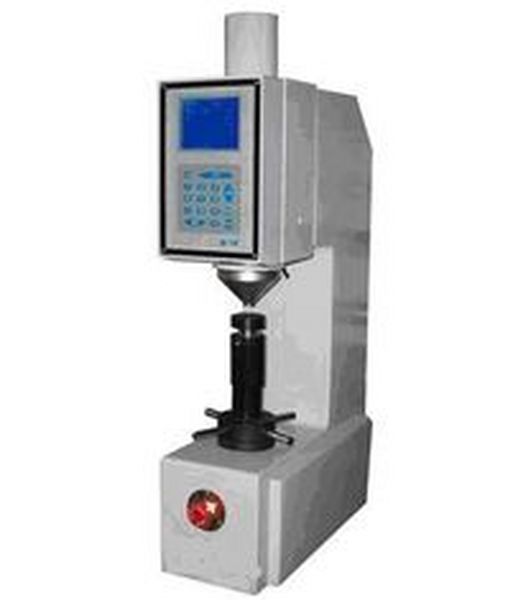

Huatec 310HRSS-150 Test force closed-loop control, Automatic Full Scale Rockwell Hardness Tester (Rockwell, Superficial Rockwell)

Specifications:

- Measuring range:

+ Rockwell: 20-88HRA, 20-100HRB, 20-70HRC

+ Superficial Rockwell: 70-94HR15N, 42-86HR30N, 20-77HR45N, 67-93HR15T, 29-82HR30T, 10-72HR45T

- Test force:

+ Rockwell 588.4, 980.7, 1471N (60, 100, 150kgf)

+ Superficial Rockwell 147.1, 294.2, 441.3N (15, 30, 45kgf)

- Measuring scale: HRA, HRB, HRC, HRN, HRT

- Unit of display: 0.1HR

- Moving range of measuring head: 50mm

- Max. height of test piece: 170mm

- Depth of throat: 150mm

- Dimensions: 910 x 535 x 220mm

- Power supply: 220V AC or 110V AC, 50 or 60Hz

- Weight: approx. 85kg

Standard accessories
- Small flat anvil: 1 pc.
- V-notch anvil: 1 pc.
- Diamond cone penetrator: 1 pc.
- 1/16" steel ball penetrator: 1 pc.
- Rockwell standardized block: 5 pcs.
- Superficial Rockwell standardized block: 4 pcs.
- Printer: 1 pc
