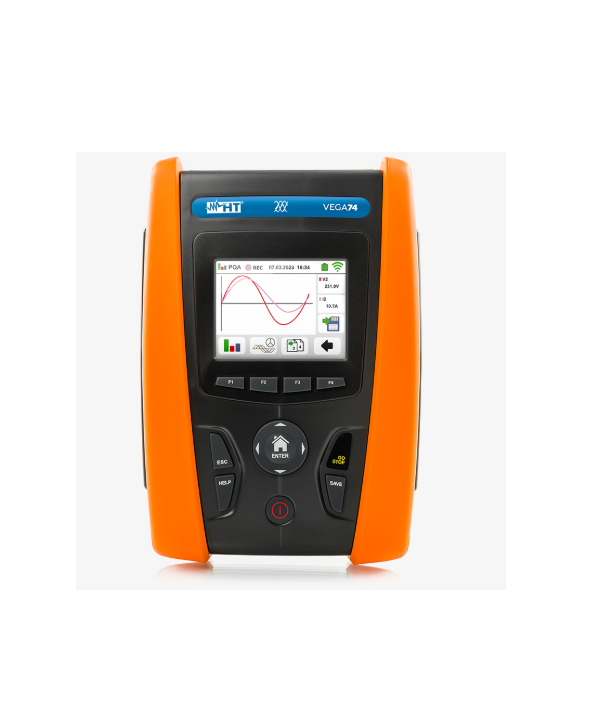

HT VEGA74 Three-Phase Quality Analyser

9 types of electrical systems: 1Φ-2 wires, 1Φ-center tap, 3Φ-3 wires, 3Φ-Aron, 3Φ-Δ Open, 3Φ-Y Open, 3Φ-2 el. 1/2, 3Φ-4 Y-wire, 3Φ-High Leg.

Integration with programmable period: 2s, 5s, 10s, 30s, 1min, 2min, 5min, 10min, 15min, 30min

Three-phase Power quality and Energy consumption analysis: Single-phase/Three-phase

AC/DC voltage in single-phase/three-phase systems: up to 600V

AC/DC current in single-phase/three-phase systems: up to 3000A

Voltage/current waveforms

Active, reactive, apparent power/energy and DC power

Voltage and current harmonics up to the 49th with THD

Cosphi, Power Factor

Voltage/current vector diagram

Voltage unbalance (NEG%, ZERO%)

Voltage Anomalies (dips and peaks) with a resolution of 20ms

Summary table of main electric parameters

Leakage Currents recording

Recording Temperature and Relative Humidity: °C, °F, HR%

Recording of the Illuminance value LUX

Indication of recording duration for mains analysis

Touchscreen colour display

Help on line on the display

Measurement category: CAT IV 300, CAT III 350, MAX 600V between inputs

Size (LxWx H) (mm): 225 x 165 x 75mm

Weight: 1.2kg
