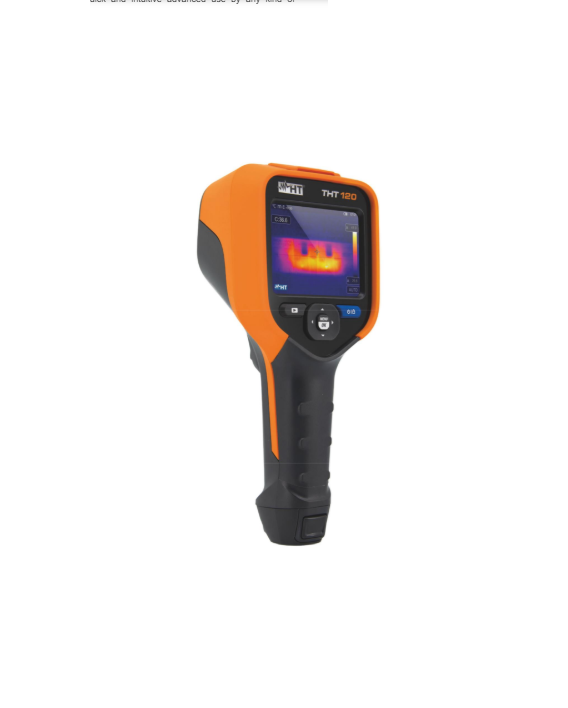

HT THT120 Professional IR Camera (-20°C ÷ 650.0°C)

Thermal

Detector type: UFPA

Spectral range: 8 ÷14µm

Risolution / Pxl size: 120 x 120 pxl / 17µm

Thermal sensitivity/NETD: <0.05°C @ 30°C / 50mK

Field of View (FOV): 15.6° x 15.6°

Focal lens / F-number: 7.5mm / 1.0

Minimum focal distance: 0.5m

IFOV (@1m): 2.26mrad

Focusing: Manual on lens

Image frequency: 50Hz

Color palettes: 8 Standard + 4 Isotherms

Visible

Integrated camera: 2Mpxl, FOV 65°

Imaging / ir video display

Display type: 3.5” TFT color, capacitive touch-screen, high brightnes

Image mode: IR, Visible, Fusion PiP, Auto Fusion

IR Video: Recording and saving MP4 format

Electronic zoom: x1 ÷ x32 in continuous way

Temperature measurement

Range/ Resolution/ Accuracy:

-20°C ÷ 650.0°C/ 0.1°C/ ±2%rdg or ±2°C (higher value)

4.0°F ÷1202.0°F/ 0.1°F/ ±2%rdg or ±3.6°F (higher value)

General specifications

Measurement cursors: 4 (1 fixed central + 3 freely positionable on image)

Measurement modes: Automatic / Manual / Histogram

Emissivity correction: 0.01 ÷ 1.00 + internal table with common materials

Alarm on temperature: Associated to measurements spots

Temp. Compensation: only Screening mode

Operating temperature: -15°C ÷ 50°C

Operating humidity: 10%RH ÷ 90%RH

Storage temperature: -40°C ÷ 70°C

Storage humidity: 10%RH ÷ 90%RH

Encapsulation: IP54 according with IEC529

Shock: 25G, according with IEC60068-2-29

Vibrations / Drop test: 2G, according with IEC60068-2-6 / 2m

Dimensions (L x W x H): 240 x 100 x 110mm

Weight(battery included): 535g
