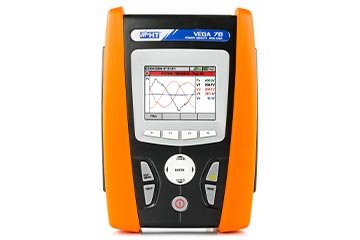

HT VEGA78 Power quality analyser CAT IV (with 4 CTs HTFLEX33D 3000A)

TRMS AC/DC phase - neutral / phase - ground voltage, single / three phase systems: 2.0 ~ 600.0V; ± (0.5%rdg + 2dgt)

TRMS AC/DC phase - phase voltage, three phase systems: 2.0 ~ 1000.0V; ± (0.5%rdg + 2dgt)

Phase - neutral voltage anomalies, single / three phase systems: 2.0 ~ 600.0V; ± (1.0% rdg + 2dgt)

Phase - phase voltage anomalies, three phase systems: 2.0 ~ 1000.0V; ± (1.0% rdg + 2dgt)

AC TRMS current with standard STD transducer clamp: 0.0 ~ 1000.0mV; ± (0.5%rdg + 0.06%FS)

TRMS AC current with flex FlexINT transducer: 0~300A & 0~3000A

Frequency: 42.5 ~ 69.0Hz; ± (0.2% rdg + 1dgt)

Voltage and current harmonics: DC~49th; ± (5%rdg + 5dgt)

Power – Single phase and three phase systems: 0.0W ~ 9.999MW; ± (1.0% rdg + 6dgt)

Energy – Single phase and three phase systems: 0.0W ~ 9.999MW; ± (1.0% rdg + 6dgt)

Power factor: 0.20~1.00

STANDARD ACCESSORIES

User manual on CD-ROM and quick guide

ISO9000 calibration certificate

HTFLEX33E FLEXIBLE CLAMP FOR AC CURRENT

VA500 Hard case

KIT800 SET OF CABLES AND ALLIGATOR CLIPS BLACK-REDGREEN- BLUE-BROWN

A0055 POWER SUPPLY CATTERY CHARGER CAT IV

YABAT0003HT1 RECHARGEABLE BAT

TOPVIEW2007 MULTI-LANGUAGE SOFTWARE TOPVIEWS

PT400
