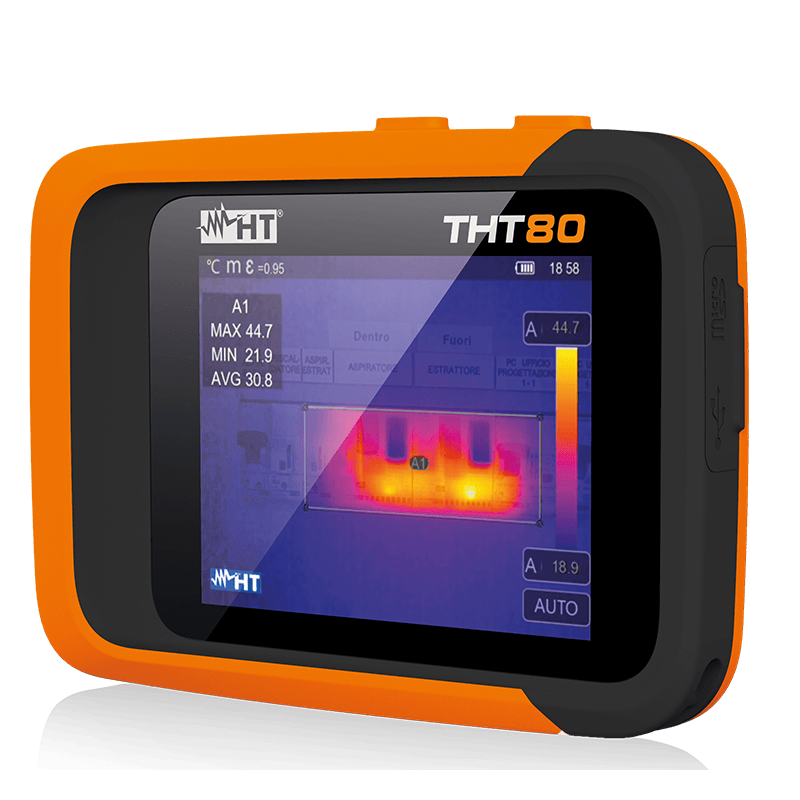

HT THT80 Compact Infrared Thermal Camera (-20~550°C; 120x90pxl; 7.3mrad)

IR Resolution: 120x90pxl

Temperature range: -20°~550°C

Image frequency: 50Hz

Thermal sensitivity/NETD: <0.05°C @ 30°C/50mK

Field of view (FOV): 50° x 37°

Focal length: f1.13

Lens: 2.3mm

IFOV: 7.3mrad

Focus mode: Automatic

Display type: 3.5” TFT color, capacitive touch-screen, high brightness

Image mode: IR, Visible, Fusion PiP, Auto Fusion

IR Video: Recording and saving MP4 format

Electronic zoom: x1 ÷ x32 in continuous way

Operating temperature: -15°C ÷ 50°C

Operating humidity: 10%RH ÷ 90%RH

Storage temperature: -40°C ÷ 70°C

Storage humidity: 10%RH ÷ 90%RH

Encapsulation: IP54 according with IEC529

Dimensions (L x W x H): 133 x 87 x 24mm

Weight: 200g

Memory: Internal memory (3.4GB) + Micro SD card 16GB (max 32GB)

File format: JPEG standard (snapshots), HIR (radiometric)

Memory size: 1000 pics/45min video (internal memory), >6000 pics (micro SD)

PC interface: USB-C (download IR images/videos to PC)

WiFi connection: For connection to mobile devices through HTProCamera APP

Battery type: Rechargeable Li-ION, 3,7V 1500mAh

Charging system: In camera

Battery life: Approx. 4 hours (stand-by and WiFi off)

External power: External adapter 100/240VAC (50/60Hz)/5VDC, 2400mA
