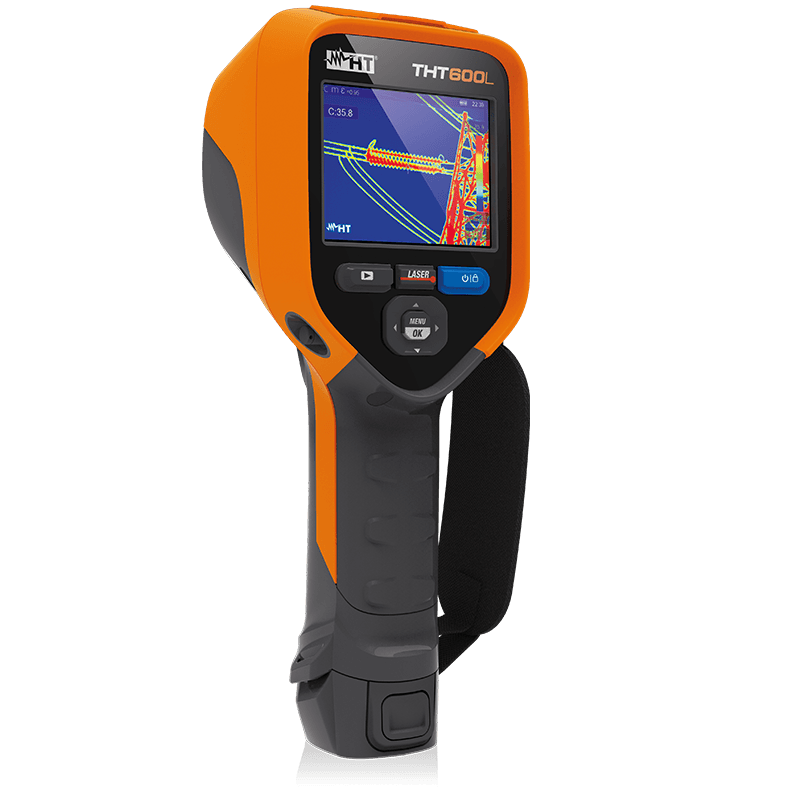

HT THT600L Advanced Infrared Thermal Camera (650°C; 384x288pxl; 0.45mrad)

IR Resolution: 384x288 pxl

Temperature range: -20°~650°C

Image frequency: 50Hz

Thermal sensitivity/NETD: <0.05°C @ 30°C/50mK

Field of view (FOV): 9.8° x 7.3°

Focal length: f1.0

Lens: 38mm

IFOV: 0.45mrad

Focus mode: manual focus

Digital zoom: 1x ÷ 32x

Memory: Internal memory (3.4GB) + Micro SD card 16GB (max 32GB)

File format: JPEG standard (snapshots), HIR (radiometric)

Memory size: 1000 pics/45min video (internal memory), >6000 pics (micro SD)

Voice annotation: 60 s/image

Textual annotation: With internal virtual keyboard

PC interface: microUSB/USB 2.0 (download IR images/videos to PC)

WiFi connection: For connection to mobile devices through HTProCamera APP

Battery type: Rechargeable Li-ION, 3,7V 5200mAh

Charging system: In camera or in base charger

Battery life: Approx. 4 hours (stand-by and WiFi off)

External power: External adapter 100/240VAC (50/60Hz)/5VDC, 2400mA

Battery operation time: 4 hours

Dimensions (L x W x H): 290 x 101 x 148mm

Weight(battery included): 900g

Datasheet
