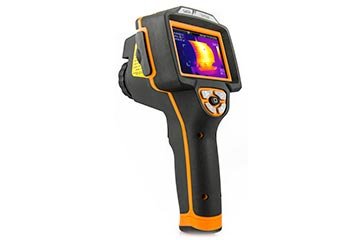

HT THT60 Professional IR camera with capacitive touch-screen

1. IMAGING PERFORMANCE

Detector type: UFPA

Spectral range: 8 ÷14μm

Risolution / Pxl size: 160x120 pxl / 25μm

Thermal sensitivity: <0.1 °C @ 30°C

Field of View (FOV): 29.8° x 22.6° (7.5mm lens)

Minimum focal distance: 0.2m

IFOV (@1m): 3.33mrad

Focusing: Manual on lens

Image frequency: 50Hz

Color palettes: 8 (Standard) + 10 (Customized)

Integrated camera: CMOS sensor 640x480pxl, FOV 62.3°

2. IMAGING / IR VIDEO DISPLAY

Display type: 3.5” TFT color, capacitive touch-screen, high brightness

Infra PiP Fusion: IR image inside visible & Visible image inside IR

IR Video: Recording and saving on micro SD card MPEG4 format

Video output: PAL / NTSC

Electronic zoom: x1 ÷ x20 in continuous way

Image rotation: 0° ÷ 360° in step of 1°

3. MEASUREMENT

Temperature range: -20°C ÷ 400°C

Measurement unit: °C, °F, °K

Accuracy: ±2%rdg or ±2°C

Measurement cursors: 3 (selection temperature MIN, MAX, Customized position on image)

Laser pointer Class: 2 according with IEC 60825-1

Built-in illuminator: White light LED

Measurement modes: Automatic / Manual / Histogram

Emissivity correction: 0.01 ÷ 1.00 + internal table with common materials

Measurement features: Automatic correction based on distance, relative humidity, atmospheric temperature, reflexed temperature, offset

Advanced analysis Spots: (max3), Lines (max 2), Areas (max 2), Isotherm

Alarm on temperature: Associated to measurements Spots

4. IMAGE STORAGE AND PC INTERFACE

Memory: Micro SD card 8GB

File format: JPEG standard

Memory size: > 2000 images

Voice annotation: 60 s / image

Textual annotation: With internal virtual keyboard

PC interface: USB 2.0 (for video and image transfer)

5. POWER SYSTEM

Battery type: Rechargeable Li-ION, 7,4V 2700mAh

Charging system: In camera or in base charger

Battery life: 4.5 hours of continuous use

External power: External adapter 100/240VAC (50/60Hz)/12VDC

Drop test: 2m

Dimensions (L x W x H): 243 x 103 x 160mm

Weight(battery included): 0.92kg

Accessories provided:

SSHIELD7X

TRIPO7X

ISO9000 calibration certificate

Cavo micro USB per collegamento PC

User manual on CD-ROM and quick guide

Micro SD Card 4GB

Video cable

Recharging base for battery BAT7X

Headset with microphone

Rechargeable Battery 2X BAT7X

Optics 7.5 mm f/1.0

Case VA6070

Charger A007X

THTLINK
