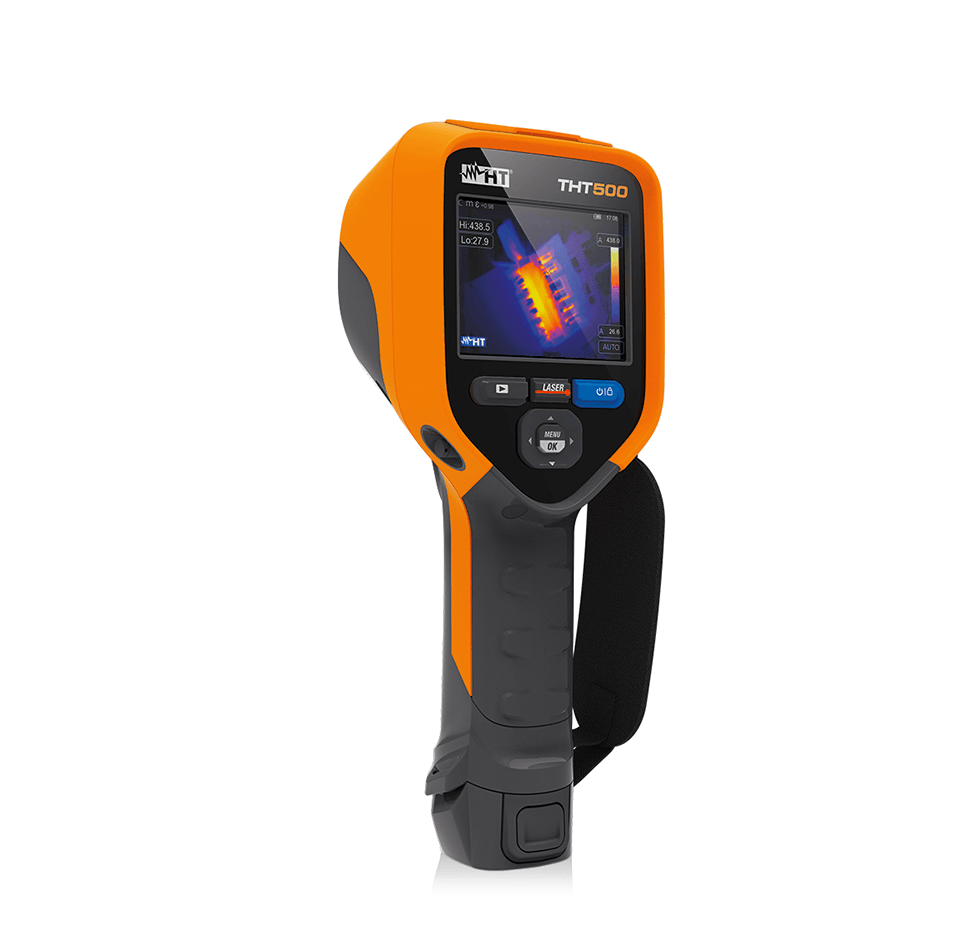

HT THT500 Infrared Thermal Camera (160x120pxl, -20°C~650.0°C, 1.89mrad)

Detector type: UFPA

Spectral range: 8 ~ 14µm

Resolution / Pxl size: 160 x 120 pxl / 17µm

Thermal sensitivity/NETD: <0.05°C @ 30°C / 50mK

Field of View (FOV: 17.3° x 13°

Focal lens / F-number: 9mm / 1.0

Minimum focal distance: 0.5m

IFOV (@1m): 1.89mrad

Focusing: Manual on lens

Image frequency: 50Hz

Color palettes: 8 Standard + 4 Isotherms

Integrated camera: 5Mpxl, FOV 59°

Display type: 3.5” TFT color, capacitive touch-screen, high brightness

Image mode: IR, Visible, Fusion PiP, Auto Fusion

IR Video: Recording and saving MP4 format

Electronic zoom: x1 ÷ x32 in continuous way

Temperature measurement range: -20°C ~ 650.0°C / -4.0°F ~ 1202.0°F

Temperature measurement screening mode range: 32.0°C ~ 42.0°C / 89.6°F ~ 107.6°F

Encapsulation: IP54

Dimensions (L x W x H) 240 x 100 x 110mm

Weight (battery included) 480g

Memory Internal memory (3.4GB) + Micro SD card 16GB (max 32GB)

File format: JPEG standard (snapshots), HIR (radiometric)

PC: interface USB-C

Battery type: Rechargeable Li-ION, 3,7V 2600mAh

External power: External adapter 100/240VAC (50/60Hz)/5VDC, 2400mA
