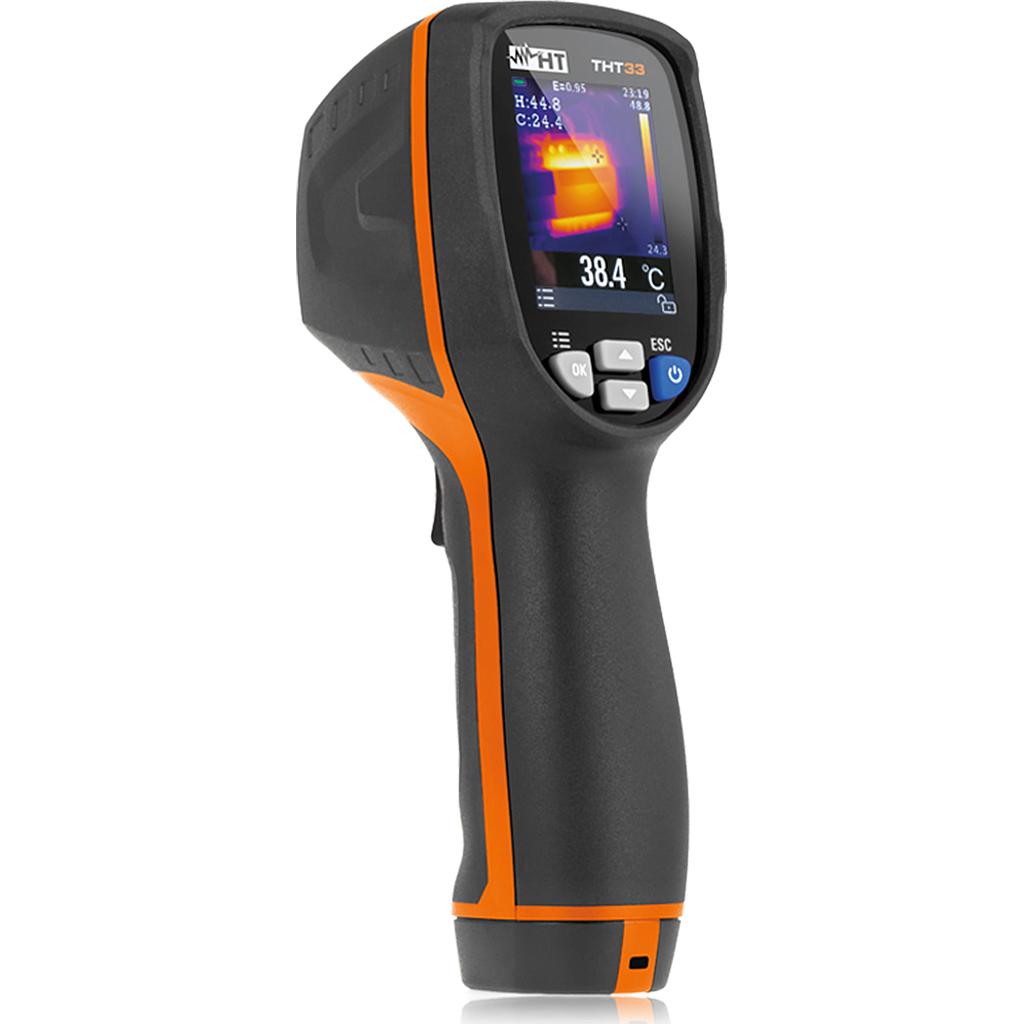

HT THT33 Compact Infrared (80x80pxl, Bluetooth)

1. IMAGING PERFORMANCE

Detector type: UFPA

Spectral range: 8 ÷14um

Resolution / Pxl size: 80x80 pxl / 34um

Thermal sensitivity: <0.1 °C @ 30°C

Field of View (FOV): 21° x 21° (7.5mm lens)

Minimum focal distance: 0.5m

IFOV (@1m) :4.53mrad

D:S ratio: 74:1

Focusing : Automatic

Image frequency: 50Hz

Color palettes: 5 (Iron, Rainbow, Grey, Grey Inverted, Feather)

Display type: 2.8” TFT color 320x240pxl

2. MEASUREMENT

Temperature range: -20°C ÷ 380°C (-4°F ÷ 716°F)

Measurement unit :°C, °F, K

Accuracy: ±2%rdg or ±2°C

Measurement cursors: 3 (MIN, MAX, FIXED)

Built-in illuminator: White light LED

Measurement modes :Automatic / Manual

Emissivity correction: 0.01 ÷ 1.00

Measurement features: Automatic correction based on emissivity

3. IMAGE STORAGE AND EXTERNAL INTERFACE

Internal memory: Max 20 location

File format: BMP

External interface: Bluetooth BLE 4.0

4. MAINS SUPPLY T HT 44 T HT 42

Battery type: Rechargeable Li-ION, 3,7V 1300mAh

Charging system: Micro USB interface on camera

Battery life: 5 hours (Bluetooth OFF), 4 hours (Bluetooth ON)

External power: External adapter 100/240VAC (50/60Hz) / 5VDC

5. GENERAL FEATURES

Operating temperature: -10°C ÷ 45°C (14°F ÷ 113°F)

Operating humidity: <80%RH

Storage temperature: -20°C ÷ 60°C C (-4°F ÷ 140°F)

Storage humidity: <80%RH

Encapsulation: IP54 according with IEC529

Drop test: 2m (7ft)

Dimensions (L x W x H): 180 x 60 x 75mm (7 x 3 x 3in)

Weight(battery included): 260g (9 ounces)

Standard accessories:

Rechargeable battery

User Manual

Power supply cattery charger

ISO9000 calibration certificate

Carrying bag
