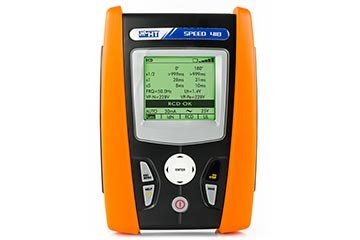

HT Instruments SPEED418 Multifunctional meter for safety test

RCDs tripping time: 1 ÷ 999; ±((2.0%rdg + 2 dgt)

RCDs tripping current :

AC: I∆N≤ 10mA, I∆N> 10mA; (0.5 ÷ 1.1) I∆N; 0%,+10%rdg

A: I∆N ≤ 10mA, I∆N> 10mA; (0.3 ÷ 1.1) I∆N; 0%,+10%rdg

Global Earth Resistance RA without RCD’s tripping: 1 ÷ 1999; ± (5.0%rdg + 3dgt)

Loop impedance P-P, P-N, P-PE TT/TN systems:

0.0 ÷ 199.9, 200 ÷ 1999 (only P-PE), ±((5.0%rdg+ 1.0Ω)

Phase sequence with 1 or 2 wires: (100 ÷ 240) ±10%

“123” ➡ correct phase sequence

“132” ➡ wrong phase sequence

“11-“ ➡ phase coincidence

Dimensions (L x W x H): 235 x 165 x 75mm

Weight (batteries included): 1.2kg

Memory: 500 locations

PC communication port: optical / USB

Display: graphic LCD with backlight

Batteries: 6x 1.5V type LR6, AA, AM3, MN 1500, > 600 measurements (without using the timer)

Accessories:

User manual on CD-ROM and quick guide

ISO9000 calibration certificate

Bag BORSA75

Cable with banana green- black- blue Shuke Plug C2033X

Datasheet

Manual
