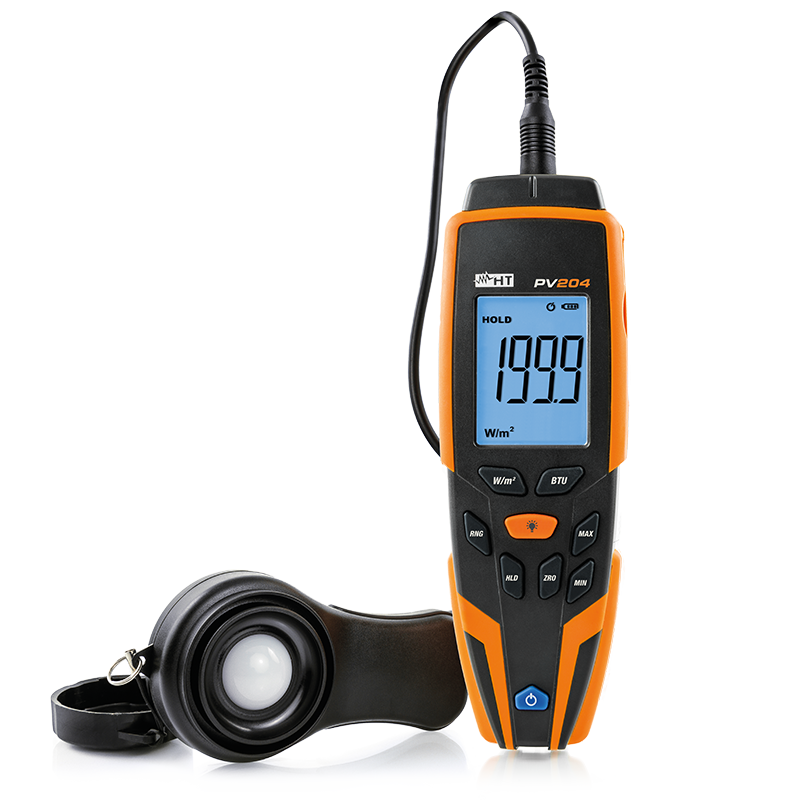

HT PV204 Mobile Digital Solar Meter (1÷1999W/m² 1÷634 BTU/(ft²*h))

SOLAR RADIATION [W/m2]

- Range: 0.1 ÷ 199.9 W/m2

200 ÷ 1999 W/m2

- Resolution: 0.1 W/m2

1 W/m2

- Accuracy: > between ± 10 W/m2 and ±5%rdg

- Accuracy for temperature: ±0.38 W/m2 / °C from 25°C

SOLAR RADIATION [BTU/(ft2*h)]

- Range: 0.1 ÷ 63.4 BTU/(ft2*h)

64 ÷ 634 BTU/(ft2*h)

- Resolution: 0.1 BTU/(ft2*h)

1 BTU/(ft2*h)

- Accuracy: > between ± 3 BTU/(ft2*h) and ±5%rdg

- Accuracy for temperature: ± 0.12 BTU/(ft2*h)/°C from 25°C

Mechanical specification:

- Dimensions (L x W x H): 190 x 65 x 45mm (7 x 3 x 2in)

- Sensor dimensions (L x W x H): 110 x 60 x 35mm (4 x 2 x 1in)

- Cable length: approx 1.0m (39in)

- Weight (included battery): 235g (8 ounces)

- Mechanical protection: IP40

Power supply:

- Battery type: 1x9V alkaline battery IEC6F22

- Low battery indication: symbol on the display

- Battery life: ca 60h (backlight ON), ca 180h (backlight OFF)

Display:

- Features: LCD, 3 ½ digits, 1999 counts, decimal point, backlight

- Refresh rate: 0,25 times/s

Sensor:

- Sensor type: silicon photodiode

Reference guidelines: EMC: IEC/EN61326-1

Environmental conditions:

- Working temperature: 5°C ÷ 40°C (41°F ÷ 104°F)

- Working humidity: <80%RH

- Storage temperature: -10°C ÷ 60°C (14°F ÷ 140°F)

- Storage humidity: <70%RH
