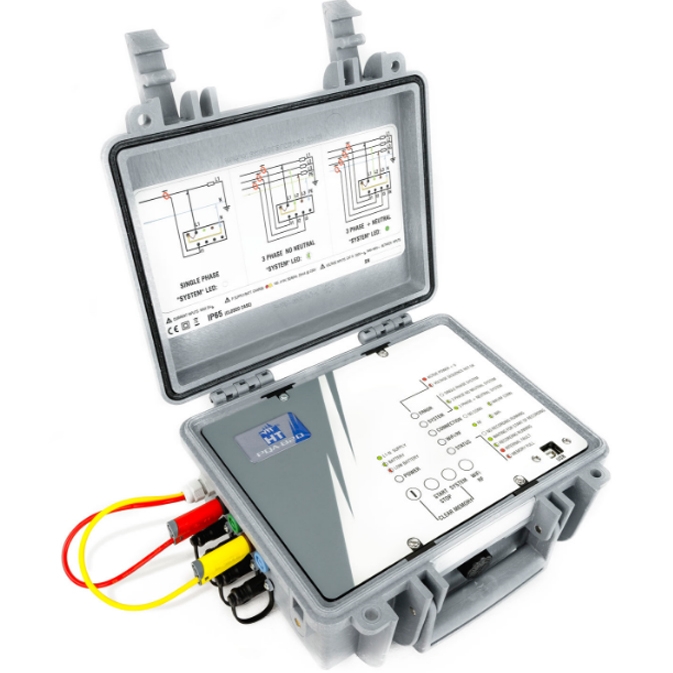

HT Instrument PQA819 Basic Power Quality Analyzer (with Wi-Fi, compatible with HTAnalysis™)

DC Voltage: 10.0~265.0V; ±(0.7% rdg + 0.4V)

AC TRMS Voltage – Phase to Neutral: 10.0~265.0V; ±(0.5% rdg + 0.2V)

AC TRMS Voltage – Phase to Phase: 50.0~460V; ±(1.0% rdg + 0.2V)

DC TRMS Current by external clamp transducer – STD clamps

5.0~219.9; ±(0.7% rdg + 1mV)

220.0~999.9 mV; ±0.7% rdg

AC TRMS Current by external clamp transducer – STD clamps

5.0~219.9mV

220.0~999.9mV

AC TRMS Current by external clamp transducer – Flex (100A AC range – 85uV/A)

0.085 ~ 8.50mV; ±(0.5% rdg +0.007mV)

AC TRMS Current by external clamp transducer – Flex (1000A AC range – 85uV/A)

0.425 ~ 85.0mV; ±(0.5% rdg +0.15mV)

Frequency: 42.5 ~ 65.0 Hz; ±(0.2% rdg + 0.1Hz)

DC Power – (Vmeas>200V): 0~9999kW

Power/Energy – (Vmeas>200V, Pf=1): 0~9999kW

Power factor (Cosφ): 0.20~1.00

POWER SUPPLY:

Internal power supply: Rechargeable battery, battery life approx. 1 hour

External power supply: By mean Red/Yellow plugs, 100~415V, 50/60Hz

45mA@100V, 30mA@230V, 20mA@415V

COMMUNICATION INTERFACE

PC (Windows), Tablet/Smartphone(iOS, Android): USB (PC only) / WiFi

MECHANICAL FEATURES:

Dimensions (L x W x H): 245 x 210 x 110mm

Weight: 1.5kg

WORKING CONDITIONS:

Reference temperature: 23°C ± 5°C

Working temperature: 0~40°C

Allowed relative humidity: <80%HR

Storage temperature: -10~60°C

Storage humidity: <80%HR

Included Accessories:

User manual on CD-ROM and quick guide

ISO9000 calibration certificate

HTFLEX33L FLEXIBLE CLAMP FOR AC CURRENT

BORSA2051 Soft bag

606-IECN CONNECTOR WITH MAGNETIC TERMINAL

KITMPPACW Cable set

KITMPPACC CLAMP FOR DC CURRENT

TOPVIEW2007 MULTI-LANGUAGE SOFTWARE
