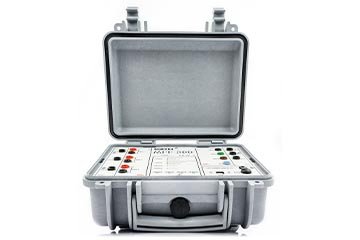

HT Instruments MPP300 Adapter for PV testing on multistring installation

DC Voltage: 10.0 ÷ 999.9; ± (0.5%rdg + 2dgt)

AC TRMS Voltage – Phase-Neutral – Single/Three phase systems: 10.0 ÷ 346.0; 42.5 ÷ 69.0 0; ± (0.5%rdg + 2cifre)

AC TRMS Voltage – Phase-Phase: 50.0 ÷ 594.0; 42.5 ÷ 69.0; ± (0.7%rdg + 2dgt)

DC Current by means of external clamp transducer STD type:

5.0mV ÷ 319.9mV; ± (0.5%rdg + 0.06%FS)

320.0mV ÷ 999.9mV; ± 0.5%rdg

AC TRMS Current by means of external clamp transducer STD type:

5.0mV ÷ 219.9mV; ± (0.5%rdg + 0.06%FS)

220.0mV ÷ 999.9mV; ± 0.5%rdg

AC TRMS current (by means of external clamp transducer of FLEX 8.5µV/A – FS 100A):

0.008 ÷ 8.50mV; 42.5 ÷ 69.0Hz; 0.001mV; ± (0.5%rdg + 7dgt); 10V

AC TRMS current (by means of external clamp transducer of FLEX 8.5µV/A – FS 1000A):

0.085 ÷ 85.0mV; 42.5 ÷ 69.0Hz; 0.01mV; ± (0.5%rdg + 15dgt); 10V

DC Power (Vmis > 150V):

1< FS ≤ 10: 0.000k ÷ 9.999k; 10.00k ÷ 99.99k; ± (0.7%rdg+3dgt) (Imis < 10%FS)

10< FS ≤ 100: 0.00 ÷ 99.99k ((0.7%rdg+3dgt) (Imis < 10%FS) ); 100.0k ÷ 999.9k (± (0.7%rdg)(Imis ≥ 10%FS) )

100< FS ≤ 1000: 0.0k ÷ 999.9k; 1000k ÷ 9999k; (± (0.7%rdg)(Imis ≥ 10%FS) )

AC Power (Vmis > 200V, PF=1):

1< FS ≤ 10: 0.000k ÷ 9.999k; 10.00k ÷ 99.99k; ± (0.7%rdg+3dgt) (Imis < 10%FS)

10< FS ≤ 100: 0.00 ÷ 99.99k ((0.7%rdg+3dgt) (Imis < 10%FS) ); 100.0k ÷ 999.9k (± (0.7%rdg)(Imis ≥ 10%FS) )

100< FS ≤ 1000: 0.0k ÷ 999.9k; 1000k ÷ 9999k; (± (0.7%rdg)(Imis ≥ 10%FS) )

Power supply: Internal rechargeable Li-ION battery (3.7V, 1900mAh)

Battery duration: > 3 hours

External power supply: AC/DC adapter 100-240V 50/60Hz / 5VDC

Memory capacity: 2Mbytes

Integration Period (IP): 5,10,30,60,120,300,600,900,1800,3600s

RF interface: connection SOLAR I-V and SOLAR-02 units

USB interface: connection SOLAR300N unit

Battery duration (with SOLAR-02): approx. 1.5 hours (@ PI = 5s) ; approx. 8 days (@ PI = 600s)

Dimensions (LxWxH): 300 x 265 x 140 mm

Weight (battery included): 1.2 kg

Accessories provided

User manual

Bag BORSA2051

Set of Cable KITMPPACW

Pair of Cable KITMPPDCW

Standard Clamp KITMPPACC

Standard Clamp KITMPPDCC

ISO9000 calibration certificate

Charger A0055
