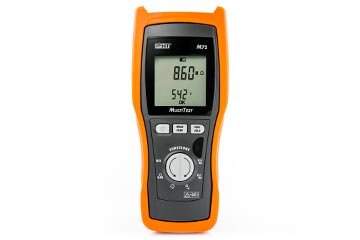

HT M72 Digital multimeter

DC Voltage: 1.0mV ÷ 605.0V; ±(0.5%rdg + 2 dgt); 1MΩ, 605Vrms max

AC Voltag: 1.0mV ÷ 605.0V; ±(1.0%rdg + 2 dgt); 1MΩ

AC/DC Voltage: Max, Min/ Avg/ Peak

MAX, MIN, AVG : 1.0mV÷ 605.0V, ±(5.0%rdg + 10 dgt), 500ms

PEAK: 10.0mV÷ 605.0V, ±(5.0%rdg + 10 dgt), 1ms

DC/AC current TRMS: 1.0mV÷ 1.200V , ±(0.5%rdg + 2 dgt), ±(1.0%rdg + 2 dgt), ±(2.0%rdg + 2 dgt), 605rms max

AC/DC Voltage: Max, Min/ Avg/ Peak

MAX, MIN, AVG : 1.0mV÷ 605.0V, ±(5.0%rdg + 10 dgt), 500ms

PEAK: 10.0mV÷ 3.000V, ±(5.0%rdg + 10 dgt), 1ms

Resistance and Continuity Test:

0.00Ω ÷ 39.99kΩ, ±(1.0%rdg + 5 dgt); R ≤ 40Ω, 605Vrms max for 1 minute

Frequency (with test leads): 30.0÷ 400Hz , ±(0.5%rdg + 2 dgt), 1.0mV ÷ 605V, 605Vrms max

Frequency (with external clamp) : 30.0÷ 400Hz , ±(0.5%rdg + 2 dgt), 1.0mV ÷ 1.000V, 605Vrms max

Continuity test on protective and equalizing conductors :

0.01÷ 99.9; ±(5.0%rdg + 3 dgt). 605Vrms max

Insulation Resistance

: 0.00÷ 199.9, ±(5.0%rdg + 2 dgt); 605Vrms max

200 ÷ 999, ±(10.0%rdg + 2 dgt); 605Vrms max

Phase Sequense/ Confornity (1 wre measurement)

SEQUENCE: 90 ÷ 315 (Phase – Earth); 45 ÷ 65; up to 315 (Phase – Earth)

CONFORMITY: 90 ÷ 315 (Phase – Earth); 45 ÷ 65; up to 550V (Phase – Phase)

Phase Sequense/ Confornity (2 wre measurement)

SEQUENCE: 110 ÷ 315 (Phase – Neutral); 45 ÷ 65; up to 315 (Phase – Earth)

CONFORMITY: 110 ÷ 315 (Phase – Neutral); 45 ÷ 65; up to 550V (Phase – Phase)

Accessories:

User Manual

ISO9000 calibration certificate

Bag BORSA2000

Set of Leads and Alligator Clip Black-Green KIT0075

Optional Accessories:

HT96U

Clamp HT4005N for AC

Clamp HT4004N for DC

NOCANBA

Rechargeable Battery YABAT0003000

External Battery Charge YABAT0004000

Clamp HT4003 for AC
